Запчасти Case IH STEIGER 435 (08-30) - HYDRAULIC REMOTE HOSES - ELECTRONIC REMOTE (08) - HYDRAULICS

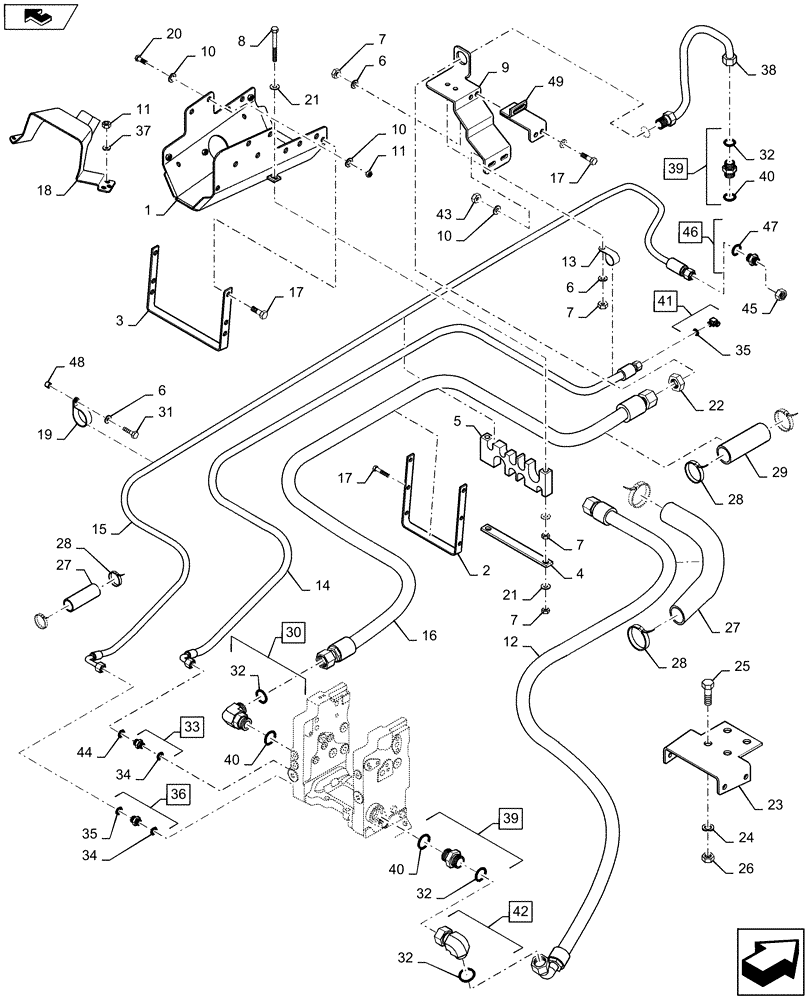

Схема запчастей Case IH STEIGER 435 - (08-30) - HYDRAULIC REMOTE HOSES - ELECTRONIC REMOTE (08) - HYDRAULICS
49
40
17
22
35
12
2
23
34
6
47
26
40
32
46
13
34
6
5
16
10
30
1
39
43
6
3
42
7
7
15
28
27
37
8
18
10
33
10
35
32
41
21
32
7
40
25
14
11
21
9
36
28
17
7
39
11
32
20
19
45
28
38
48
44
31
24
29
17
4
27

Артикул

Название

Примечание

Количество

1

84282138

BRACKET, SUPPORTING

Hoses

1шт.

2

405517A1

BRACKET

Support

1шт.

3

87388511

BRACKET

Support

1шт.

4

405520A1

PLATE

1шт.

5

362419A1

CLAMP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

8

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

9

87306262

BRACKET

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

360134A2

HOSE ASSY.,25.4mm ID x 3238mm L

3238 mm (127 in)

1шт.

12

437272A1S

HOSE ASSY.

3238 mm (127")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

14

87394490

HOSE,9.53mm ID x 4384mm L

4384 mm (172-1/2"), from Priority Valve to Manifold Valve Auxiliary Load Sense Port

1шт.

14

87610048

HOSE ASSY.

from Priority Valve to Manifold Valve Auxiliary Load Sense Port

1шт.

Arctic QUADTRAC Tractor Application

1шт.

15

87539204

HOSE,9.53mm ID x 3323mm L

3323 mm (131")

1шт.

15

87610047

HOSE ASSY.

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

87438667

HOSE,25.4mm ID x 3300mm L

3300 mm (130")

1шт.

16

87610046

HOSE ASSY.,25.4mm ID x 3300mm L

3300 mm (130")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

18

405521A1

SHIELD

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

22

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

23

404604A1

BRACKET

Mounting, PTO / Remote Hose Bracket

1шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

25

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

4шт.

26

829-1416

NUT,M16, Cl 10

4шт.

27

387840A1

SLEEVE

610 mm (24 in)

2шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

29

S120426

TUBE

1шт.

30

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 32, 40

1шт.

31

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

32

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

33

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Destroke Pump, Incl 34

1шт.

34

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

36

339487A2

HYD CONNECTOR

Incl 34, 35

1шт.

37

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

38

87438486

HYD TUBE,20.58 mm ID x 25.40 mm OD x 880, 219 mm L

EF Outlet

1шт.

39

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 32, 40

2шт.

40

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

41

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 35

1шт.

42

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 32

1шт.

Used without Three Point Hitch

1шт.

42

311834A1

ELBOW

with Side Port, Incl 32

1шт.

Used with Three Point Hitch

1шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

703-903

TUBE NUT,1" - 14

1шт.

46

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

Incl 47

1шт.

47

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

48

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

1шт.

49

87540204

BRACKET

Support

1шт.

Выбрано товаров: 60
