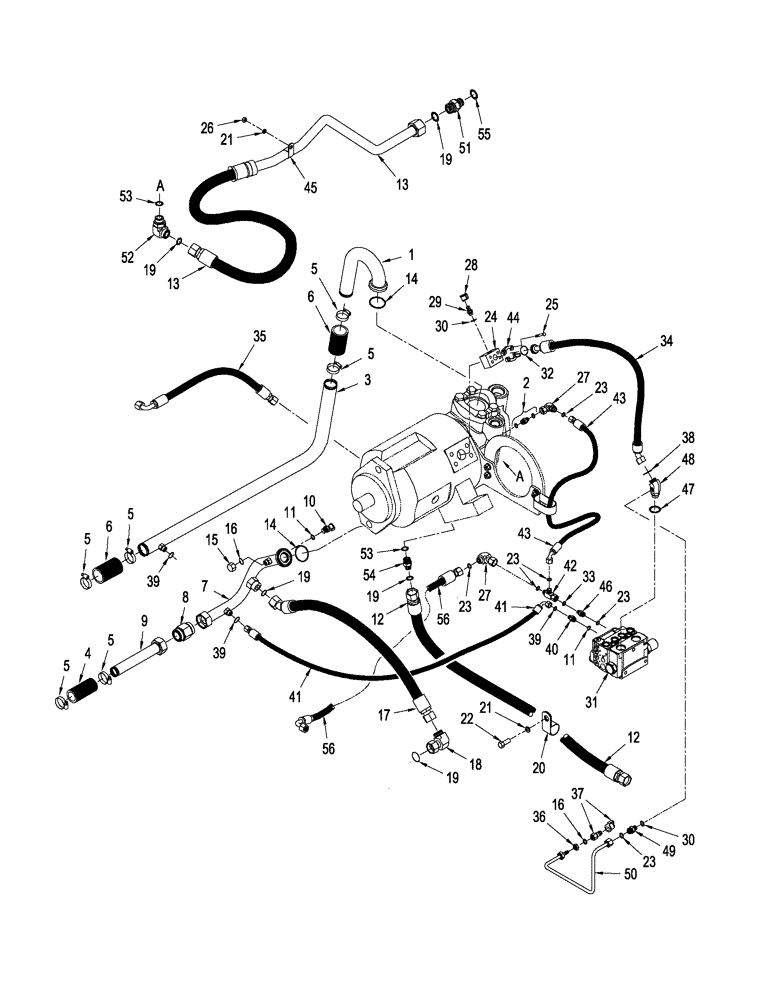

Запчасти Case IH STEIGER 435 (08-21) - STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH MANUAL SHIFT TRANSMISSION (08) - HYDRAULICS

1

402484A2

TUBE

1шт.

2

1957867C1

FILTER SCREEN

With O-Rings

1шт.

3

401617A3

TUBE

1шт.

4

1-4571

HOSE

114 mm (4-1/2")

1шт.

5

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

6

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4"), Cut From 1-4568

2шт.

7

87441239

TUBE,38.1 mm OD x 337, 250 mm L

Inc. 15 & 16

1шт.

8

87545498

CHECK VALVE

Inc. item 8A

1шт.

8a

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

For item #8

2шт.

9

87307320

TUBE,34.80 mm ID x 38.10 mm OD x 275 mm L

1шт.

10

358968A1

FITTING

M18 orb x 1,5, Diagnostic, Inc. 11

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

349499A1

HOSE ASSY.

1420 mm (56")

1шт.

13

87357616

HYD TUBE

1816 mm (71"), Gear Pump to RH Filter

1шт.

13

87621616

TUBE,23.3 mm ID x 25.4 mm OD x 979, 780 mm L

1816 mm (71"), Gear Pump to RH Filter

1шт.

Arctic QUADTRAC Tractor Application

1шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

15

701-900

CAP,11/16" - 16

Inc. 16

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

335104A2

HOSE ASSY.

925 mm (36"), Regulator Valve to Piston Pump Supply

1шт.

17

437264A1S

HOSE ASSY.

925 mm (36"), Regulator Valve to Piston Pump Supply

1шт.

Arctic QUADTRAC Tractor Application

1шт.

18

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 19

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

20

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

24

87309732

BLOCK

1шт.

25

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

27

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

2шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 28 - 29

1шт.

28

H434163

DUST CAP

1шт.

29

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

87585898

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-16

1шт.

32

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

33

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

87565932

HOSE ASSY.

869 mm (34-1/2")

1шт.

34

87621613

HOSE ASSY.

869 mm (34-1/2")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

35

327499A1

HOSE ASSY.

665 mm (26-1/2")

1шт.

36

701-909

NUT,11/16" - 16

1шт.

37

190119A1

COUPLING

Diagnostic

1шт.

38

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 11 & 60

1шт.

41

87438228

HOSE ASSY.

1211 mm (47-1/2")

1шт.

42

300209A1

VALVE

Shuttle

1шт.

43

87389531

HOSE

1820 mm (71-1/2")

1шт.

43

87621611

HOSE ASSY.

1820 mm (71-1/2")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

44

A12306

FLANGE

Split Clamp

2шт.

45

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

46

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 23 & 33

1шт.

47

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

48

87550213

FITTING

45, Special, Inc. 38 & 47

1шт.

49

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 23, 30

1шт.

50

87565927

TUBE,7.045 mm ID x 9.525 mm OD

Diagnostic Priority

1шт.

51

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 19 & 55

1шт.

52

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 19 & 53

1шт.

53

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

54

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 19 & 53

1шт.

55

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

56

87394490

HOSE,9.53mm ID x 4384mm L

4384 mm (172-1/2"), from Priority Vavle to Manifold Valve Auxiliary Load Sense Port

1шт.

56

87610048

HOSE ASSY.

4384 mm (172-1/2"), from Priority Vavle to Manifold Valve Auxiliary Load Sense Port

1шт.
