(08-04) - HYDRAULIC OIL COOLER MOUNTING, STEIGER 385 / 435

Запчасти Case IH STEIGER 435 (08-04) - HYDRAULIC OIL COOLER MOUNTING, STEIGER 385 / 435 (08) - HYDRAULICS

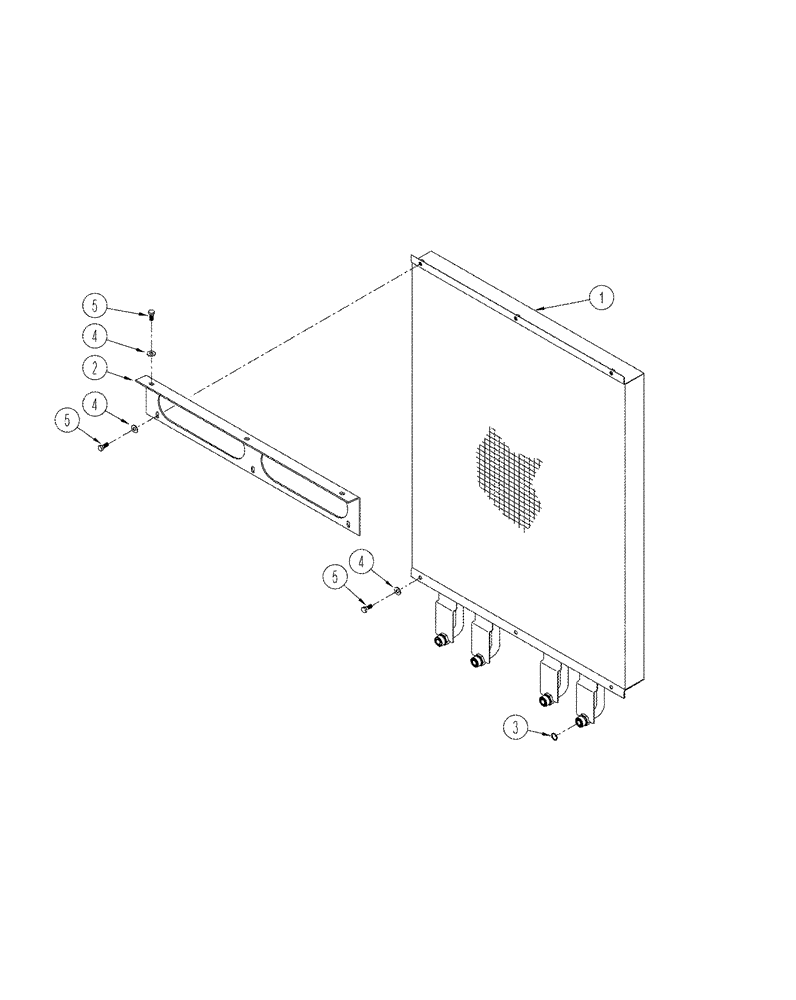

Схема запчастей Case IH STEIGER 435 - (08-04) - HYDRAULIC OIL COOLER MOUNTING, STEIGER 385 / 435 (08) - HYDRAULICS
2
5
4
4
4
5
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87312759

OIL COOLER

1шт.

2

302339A1

ANGLE

Bracket, Oil Cooler Mounting

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

9шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.
