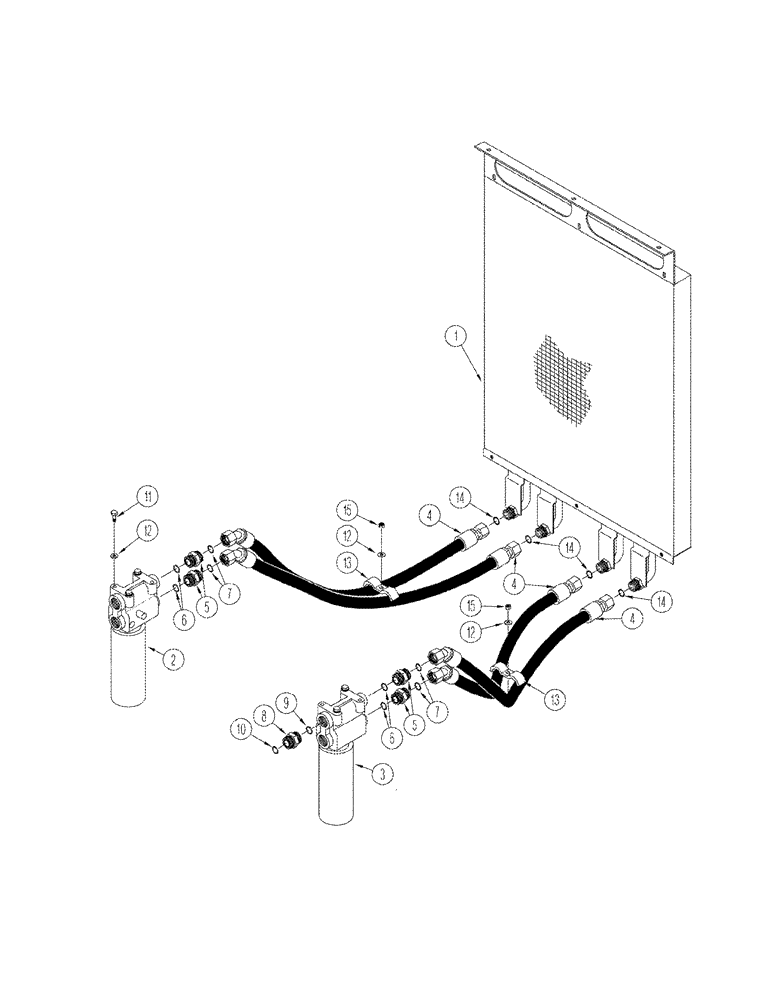

Запчасти Case IH STEIGER 435 (08-01) - HYDRAULIC OIL COOLER, STEIGER 385 / 435 (08) - HYDRAULICS

1

87312759

OIL COOLER

1шт.

2

REF

INSTRUCTION

Filter, Transmission, LH, See Figure: 08-05

1шт.

3

REF

INSTRUCTION

Filter, Axle Lubrication, RH, See Figure: 08-05

1шт.

4

377614A1

HOSE ASSY.

1022 mm (40")

4шт.

4

437282A1S

HOSE ASSY.

1022 mm (40")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

5

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 6, 7

4шт.

6

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 9, 10

2шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

10

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

13

R15257

CLAMP

2шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
