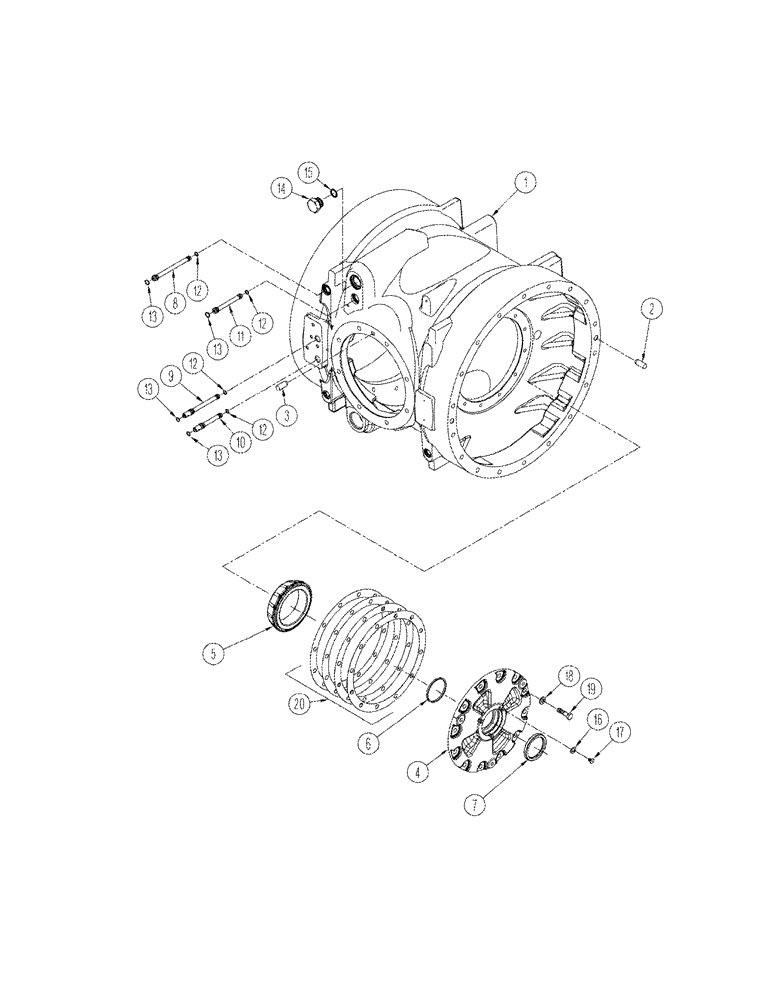

Запчасти Case IH STEIGER 435 (06-72) - 500 SERIES AXLE ASSEMBLY - CENTER AND LEFT-HAND CARRIER, WHEEL TRACTOR (06) - POWER TRAIN

86985668

FRONT AXLE

HD W/Diff Lock

1шт.

86985668R

REMAN-FRONT AXLE w/D

HD W/Diff Lock

1шт.

86985668C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

86985669

REAR AXLE

HD W/Diff Lock

1шт.

86985669R

REMAN-RR AXLE W/DI

HD W/Diff Lock

1шт.

86985669C

CORE-REAR AXLE W/DI

Return Number

1шт.

87438232

AXLE HOUSING

Center, Inc. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

369765A1

COVER

1шт.

5

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

6

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

7

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

8

284188A1

TUBE,7.47 mm ID, 11.85 mm OD, 120 mm Length

Jumper, Service Brake

1шт.

9

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

Jumper. Lubrication

1шт.

10

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

Jumper, Lubrication

1шт.

11

298567A1

TUBE,11.85 mm OD, 156 mm Length

Jumper, Park Brake

1шт.

12

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

13

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

4шт.

14

220069A1

PLUG,M33 x 2, ORB

Incl. 15

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

17

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

18

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

19

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

12шт.

20

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

20

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

20

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

20

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.
