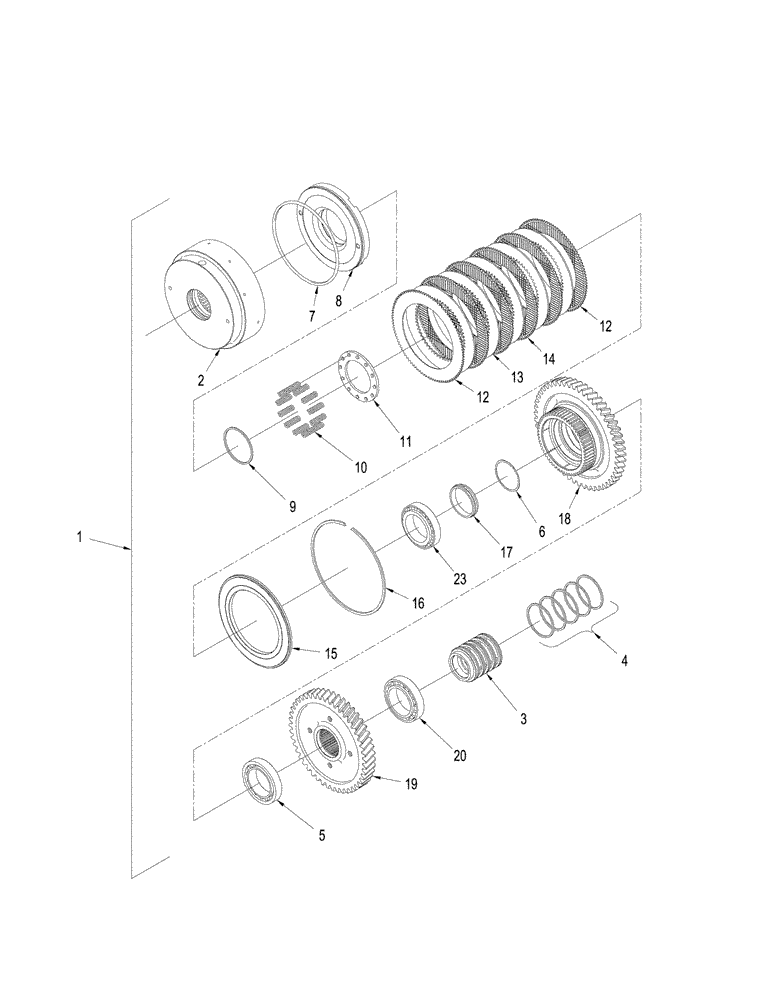

Запчасти Case IH STEIGER 435 (06-53[02]) - POWER SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN

1

87552053

CLUTCH INPUT SHAFT

Input, 8C, Inc. 2 - 25, Also See Figure 06-52

1шт.

1

87552050

CLUTCH INPUT SHAFT

Input, 8,5C, Inc. 2 - 25, Also See Figure 06-52

1шт.

2

87552054

DRUM

1F, Clutch

1шт.

3

359207A1

CARRIER

Seal

1шт.

8

87552055

PISTON

Clutch

1шт.

4

S4150S00F

RING

Seal

5шт.

5

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Roller

2шт.

7

87431391

RING

Seal

1шт.

6

352818A1

SHIM,0.15mm Thk

(0.006")

1шт.

6

352819A1

SHIM,0.18mm Thk

(0.007")

1шт.

6

352820A1

SHIM,0.20mm Thk

(0.008")

1шт.

6

352821A1

SHIM,0.25mm Thk

(0.010")

1шт.

6

352822A1

SHIM,0.30mm Thk

(0.012")

1шт.

6

352823A1

SHIM,0.50mm Thk

(0.020")

1шт.

9

S5510S00F

RING

1шт.

10

358971A1

SPRING

Return

20шт.

11

87552056

RETAINER

Plate

1шт.

12

370555A1

CLUTCH DISC

CLUTCH DISK Faced

2шт.

13

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK If Used, 2,4 mm (0,094 in)

1шт.

13

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK If Used, 2,1 mm (0,083 in)

1шт.

14

370556A1

CLUTCH DISC

CLUTCH DISK Faced

4шт.

15

442803A1

PLATE

End

1шт.

16

428108A1

RING, SNAP

RING SNAP

1шт.

17

359203A1

SPACER

1F Bearing

1шт.

18

359204A1

GEAR

1F

1шт.

19

87350261

DRIVING GEAR

1шт.

20

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

23

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Roller

2шт.
