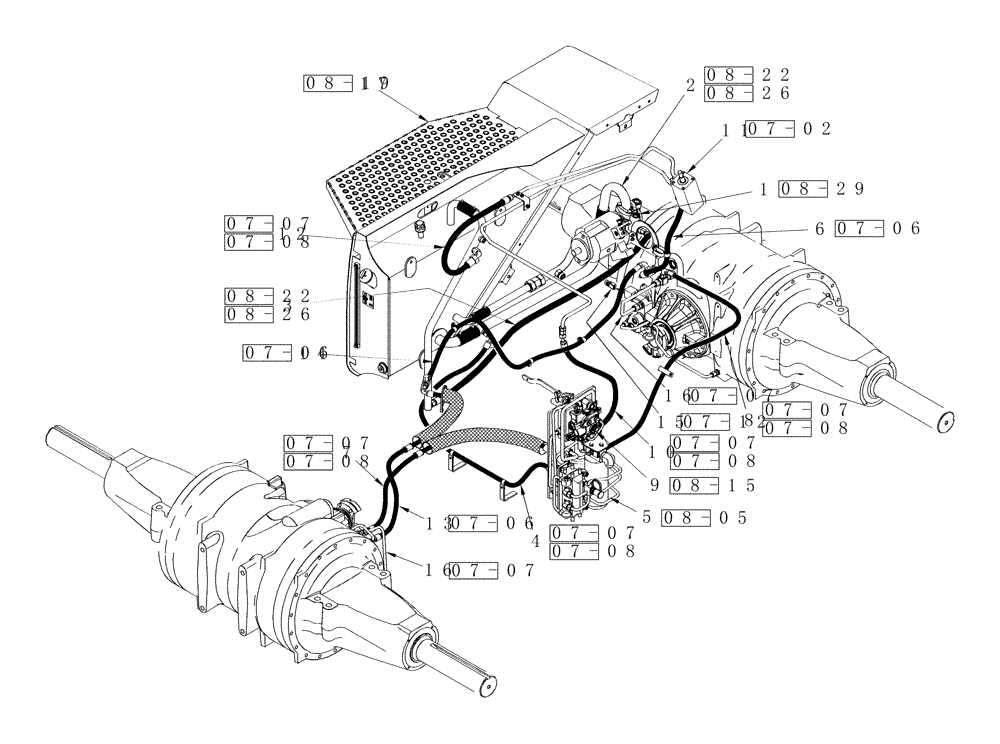

Запчасти Case IH STEIGER 435 (01A-14) - HYDRAULICS - CHARGE PUMP AND BRAKE CIRCUIT, 500 SERIES AXLE, WHEEL TRACTOR (00) - PICTORIAL INDEX

1

Pump, Gear, See Figure 08-29

1шт.

2

Tube, Gear Pump Supply from Tank, Standard Hydraulics, See Figure 08-22

1шт.

2

Tube, Gear Pump Supply from Tank, High Output Hydraulics, See Figure 08-26

1шт.

3

Hose, Gear Pump to Charge Return Tube, Standard Hydraulics, See Figure 08-22

1шт.

3

Hosem, Gear Pump to Charge Return Tube, High Output Hydraulics, See Figure 08-26

1шт.

4

Hose, Tow Valve Supply, See Figure 07-07 & 07-08

1шт.

5

Fillter, Tow Valve Assembly, See Figure 08-05

1шт.

6

Hose, Service Brake Line, See Figure 07-06

1шт.

7

Hose, Tow Valve Supply For Rear Axle Park Brake, See Figure 07-07 & 07-08

1шт.

8

Hose, Tow Valve Supply For Front Axle Park Brake, See Figure 07-07 & 07-08

1шт.

9

Valve, Regulator, See Figure 08-15

1шт.

10

Hose, Regulator Output To Brake Valve, See Figure 07-07 & 07-08

1шт.

11

Valve, Brake, See Figure 07-02

1шт.

12

Hose, Brake Valve Return To Tank, See Figure 07-07 & 07-08

1шт.

13

Hose, Service Brake To Rear Axle, See Figure 07-06

1шт.

14

Hose, Sevice Brake To Front Axle, See Figure 07-06

1шт.

15

Solenoid, Differential Lock, See Figure 07-12

1шт.

Used with Differential Lock Applications

1шт.

16

Tube, Differential Lock, See Figure 07-07

1шт.

Used with Differential Lock Applications

1шт.

17

Tank, Hydraulics, See Figure 08-19

1шт.
