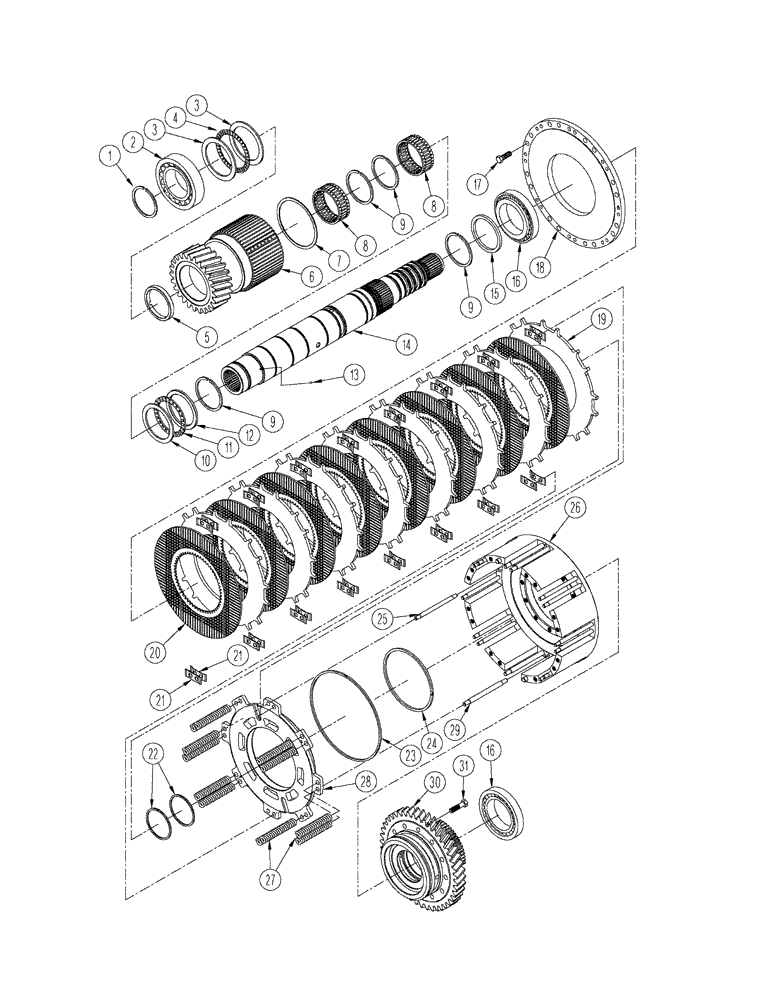

Запчасти Case IH STEIGER 435 (06-39) - MANUAL SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN

428120A1

SHAFT ASSY.

Input, Inc. 1 - 31, Also See Figure: 06-40

1шт.

1

427643A1

SNAP RING

2,4 mm

1шт.

1

427644A1

RING

2,5 mm

1шт.

1

427645A1

RING

2,6 mm

1шт.

1

427646A1

RING

2,7 mm

1шт.

2

427613A1

TAPERED BEARING

1шт.

3

427620A1

THRUST WASHER

2шт.

4

427617A1

THRUST BEARING

1шт.

5

427619A1

COLLAR

1шт.

6

427610A1

GEAR

Input

1шт.

7

427608A1

RING, SNAP

RING SNAP

1шт.

8

427612A1

BEARING, NEEDLE

2шт.

9

S5040S00F

RING

3шт.

10

S5230S00F

BEARING WASHER

1шт.

11

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

1шт.

12

427618A1

THRUST WASHER

2шт.

13

S14701960

BALL,3.968mm OD

1шт.

14

428101A1

SHAFT

High / Low Input

1шт.

15

427621A1

THRUST WASHER

Thrust, 5,10 mm

1шт.

15

427622A1

THRUST WASHER

Thrust, 5,15 mm

1шт.

15

427623A1

THRUST WASHER

Thrust, 5,20 mm

1шт.

15

427624A1

THRUST WASHER

Thrust, 5,25 mm

1шт.

15

427625A1

THRUST WASHER

Thrust, 5,30 mm

1шт.

15

427626A1

THRUST WASHER

Thrust, 5,35 mm

1шт.

15

427627A1

THRUST WASHER

Thrust, 5,40 mm

1шт.

15

427628A1

THRUST WASHER

Thrust, 5,45 mm

1шт.

15

427629A1

THRUST WASHER

Thrust, 5,50 mm

1шт.

15

427630A1

THRUST WASHER

Thrust, 5,55 mm

1шт.

15

427631A1

THRUST WASHER

Thrust, 5,60 mm

1шт.

15

427632A1

THRUST WASHER

Thrust, 5,65 mm

1шт.

15

427633A1

THRUST WASHER

Thrust, 5,70 mm

1шт.

15

427634A1

THRUST WASHER

Thrust, 5,75 mm

1шт.

15

427635A1

THRUST WASHER

Thrust, 5,80 mm

1шт.

15

427636A1

THRUST WASHER

Thrust, 5,85 mm

1шт.

15

427637A1

THRUST WASHER

Thrust, 5,90 mm

1шт.

15

427638A1

THRUST WASHER

Thrust, 5,95 mm

1шт.

15

427639A1

THRUST WASHER

Thrust, 6,0 mm

1шт.

15

427640A1

THRUST WASHER

Thrust, 6,05 mm

1шт.

15

427641A1

THRUST WASHER

Thrust, 6,10 mm

1шт.

15

427642A1

THRUST WASHER

Thrust, 6,15 mm

1шт.

16

428112A1

TAPERED BEARING

2шт.

17

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

18

427595A1

COVER

1шт.

19

427602A1

CLUTCH DISC

CLUTCH DISK If Used, 6,8 mm (0.268 in)

1шт.

19

427603A1

CLUTCH DISC

CLUTCH DISK If Used, 7,2 mm (0.283 in)

1шт.

20

427601A1

CLUTCH DISC

CLUTCH DISK Faced

8шт.

21

427606A1

PLATE

Clutch Separator

32шт.

22

S4410S00F

RING

Seal

3шт.

23

427600A1

SEALING RING

SEALRING

1шт.

24

427599A1

SEALING RING

SEALRING

1шт.

25

427605A1

GUIDE

12шт.

26

427607A1

DRUM

Clutch

1шт.

27

427596A1

SPRING

12шт.

28

427604A1

PISTON

Clutch

1шт.

29

427597A1

GUIDE

4шт.

30

428119A1

GEAR

High

1шт.

31

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

12шт.
