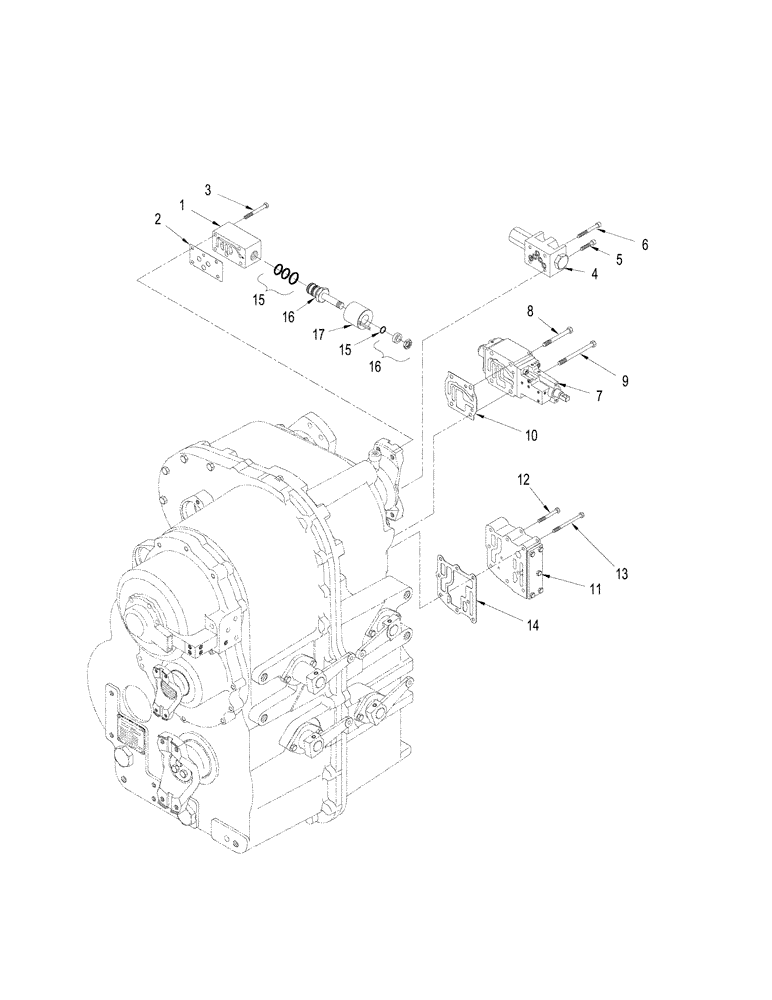

Запчасти Case IH STEIGER 435 (06-33) - MANUAL SHIFT TRANSMISSION - VALVE ASSEMBLY MOUNTING (06) - POWER TRAIN

1

428114A1

VALVE

Hi / Low

1шт.

2

428123A1

GASKET

1шт.

3

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

4

428091A1

VALVE

Lockout, See Figure 06-46

1шт.

5

427594A1

BOLT

2шт.

6

427593A1

BOLT

2шт.

7

428083A1

VALVE

Control, See Figure 06-45

1шт.

8

514-729

BOLT,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

9

514-739

BOLT,Hex, M10 x 1.25 x 120mm, Cl 8.8

2шт.

10

427581A1

GASKET

1шт.

11

428096A1

VALVE

Regulator, See Figure 06-47

1шт.

12

614-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

5шт.

13

614-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8, Full Thd

3шт.

14

S1150S02F

GASKET

1шт.

371737A1

SOLENOID VALVE

Three-way, Inc. 15 - 17

1шт.

371737A1R

REMAN-SOLENOID

Three-way, Inc. 15 - 17

1шт.

371737A1C

CORE-SOLENOID

Return Number

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

16

370600A1

SOLENOID VALVE

Pilot Assy.

1шт.

17

371739A1

COIL

1шт.
