Запчасти Case IH STEIGER 435 (06-21) - VALVE ASSEMBLY - POWER TAKE OFF (06) - POWER TRAIN

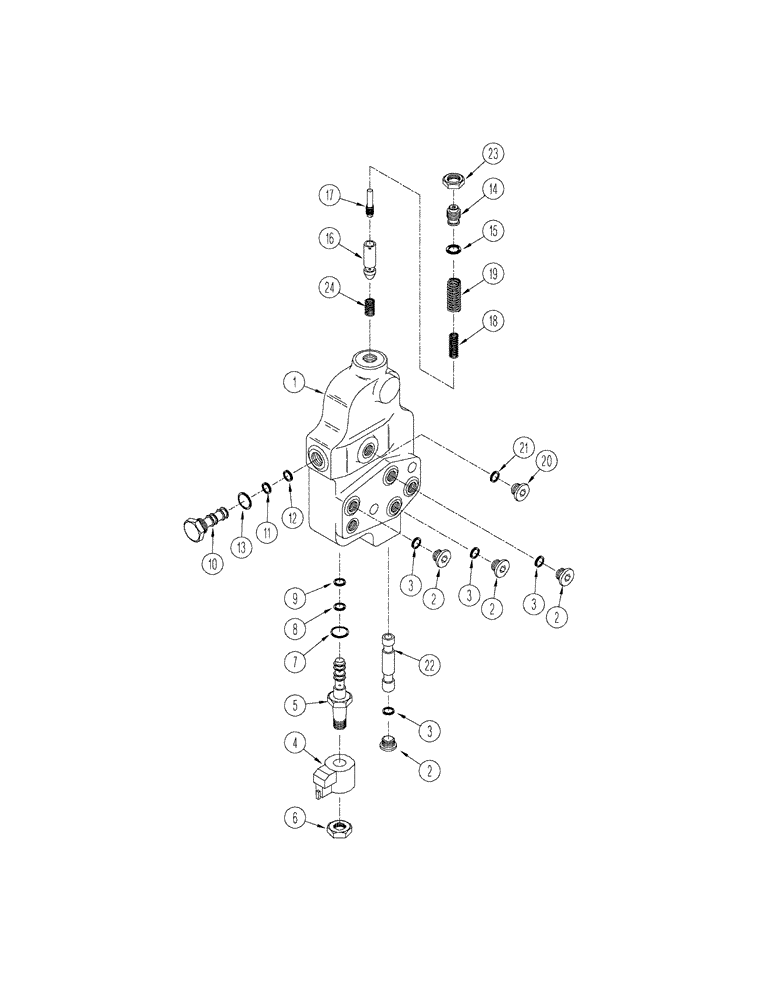

Схема запчастей Case IH STEIGER 435 - (06-21) - VALVE ASSEMBLY - POWER TAKE OFF (06) - POWER TRAIN
24
21
2
9
3
4
18
1
14
22
3
7
8
10
20
6
19
17
2
12
2
15
3
16
2
11
5
23
3
13

Артикул

Название

Примечание

Количество

87697993

VALVE

Power Takeoff, Inc. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

221578A1

PLUG,M18 x 1.5 ORB

Incl. 3

4шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

318822A1

SOLENOID VALVE

Incl. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

Coil

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

6

NSS

NOT SOLD SEPARAT

Nut

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

9

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

315514A1

PLUG

Inc. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

Plug

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

345794A1

PLUG

Inc. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Plug

1шт.

15

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

16

87697995

SLEEVE

1шт.

17

319665A1

PISTON

1шт.

18

319661A1

SPRING

Inner, PTO

1шт.

19

319660A1

SPRING

Outer, PTO

1шт.

20

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 21

1шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

87309879

SPOOL

1шт.

23

322118A1

SPECIAL NUT

1шт.

24

319659A1

SPRING

Reducing / Lube

1шт.

Выбрано товаров: 28
