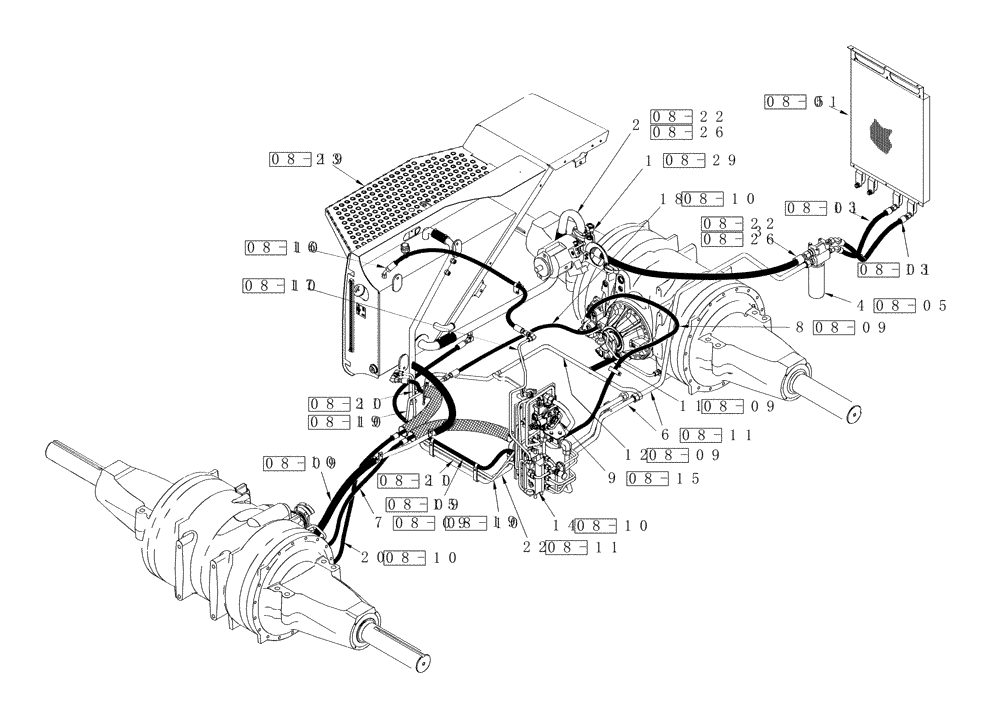

Запчасти Case IH STEIGER 435 (01A-07) - HYDRAULICS - AXLE LUBRICATION & COOLING CIRCUIT, 500 SERIES AXLE, WHEEL TRACTOR, STEIGER 385 / 435 HD (00) - PICTORIAL INDEX

1

Pump, Gear, See Figure 08-29

1шт.

2

Tube, Gear Pump Supply, Standard Hydraulics, See Figure 08-22

1шт.

2

Tube, Gear Pump supply, High Output Hydraulics, See Figure 08-26

1шт.

3

Hose, Gear Pump To Filter, Standard Hydraulics, See Figure 08-22

1шт.

3

Hose, Gear Pump to Filter, High Output Hydraulics, See Figure 08-26

1шт.

4

Filter, Axle Lubrication, Right-Hand, See Figure 08-03

1шт.

5

Cooler, Hydraulic Oil, See Figure 08-05

1шт.

6

Tube, Filter To Regulator Valve, See Figure 08-11

1шт.

7

Hose, Regulator Supply To Rear Axle, See Figure 08-09

1шт.

8

Hose, Regulator Valve Supply To Front Axle, See Figure 08-09

1шт.

9

Valve, Regulator, See Figure 08-15

1шт.

10

Hose, Rear Axle Return To Tank, See Figure 08-09

1шт.

11

Hose, Front Axle Return to Tank, See Figure 08-09

1шт.

12

Tube, Return, See Figure 08-09

1шт.

13

Hose, Filter To Cooler, See Figure 08-01

1шт.

14

Pump, Axle Air / Lube, See Figure 08-10

1шт.

15

Hose, Regulator Valve Return To Tank, See Figure 08-09

1шт.

16

Hose, Air Supply, See Figure 08-10

1шт.

17

Tube, Air Supply, See Figure 08-10

1шт.

18

Hose, Front Axle Air / Lube Supply, See Figure 08-10

1шт.

19

Tube, Front Axle Air / Lube Supply, See Figure 08-10

1шт.

20

Hose, Rear Axle Air / Lube Supply, See Figure 08-10

1шт.

21

Tube, Rear Axle Air / Lube Supply, See Figure 08-10

1шт.

22

Tube, Charge Return to Filter, See Figure 08-11

1шт.

23

Tank, Hydraulic, See Figure 08-19

1шт.
