Запчасти Case IH STEIGER 435 (06-14) - AXLE ASSEMBLY - ROLLER SHAFT (06) - POWER TRAIN

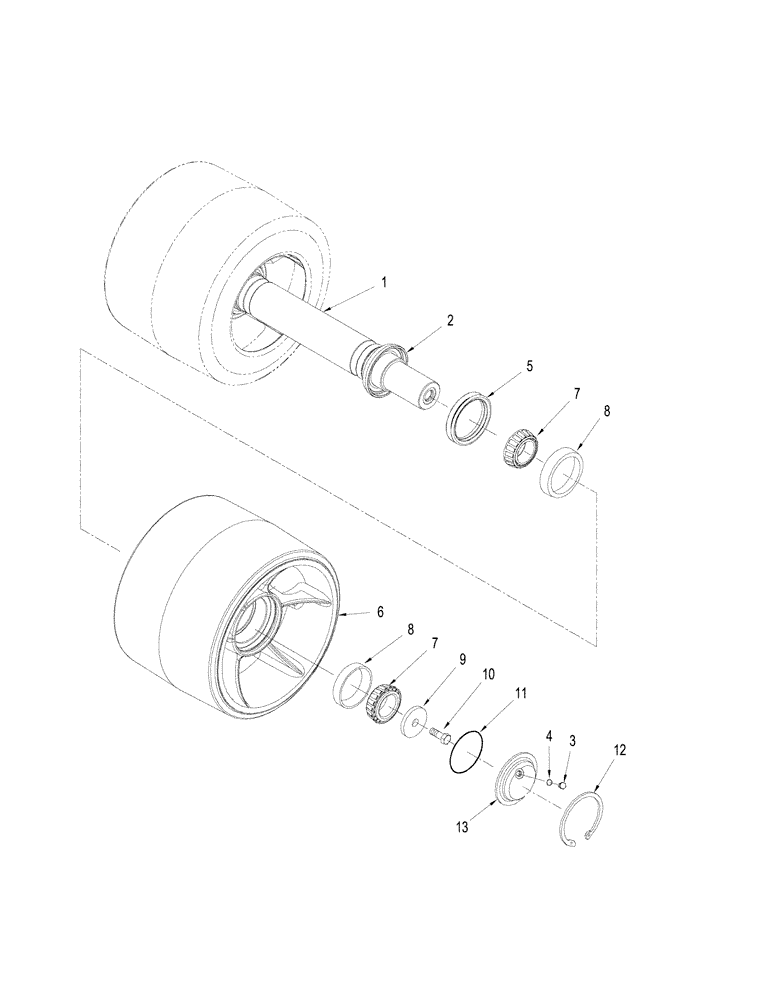

Схема запчастей Case IH STEIGER 435 - (06-14) - AXLE ASSEMBLY - ROLLER SHAFT (06) - POWER TRAIN
11
7
10
2
6
3
1
7
13
12
5
4
9
8
8

Артикул

Название

Примечание

Количество

1

87431253

ROLLER SHAFT

Assy.

3шт.

1

87427034

ROLLER SHAFT

Assy.

3шт.

Arctic QUADTRAC Tractor Application

1шт.

2

87304018

CUP,65.98mm ID x 124.7mm OD x 25mm Thk

Roller

6шт.

3

246406A1

PLUG,M12 x 1.5 ORB

Inc. 4

6шт.

4

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

5

87437009

SEAL

Roller Face

6шт.

5

87427008

SEAL

Multiple Lip

6шт.

Arctic QUADTRAC Tractor Application

1шт.

6

87438307

WHEEL ASSY

Roller

2шт.

6

47487680R

REMAN-WHEEL ROLLER

Roller

2шт.

6

47487680C

CORE-WHEEL ROLLER

Return Number

2шт.

87309812

WHEEL ASSY

Roller

1шт.

87309812R

REMAN-WHEEL ROLLER

Reman Roller

1шт.

87309812C

CORE-WHEEL ROLLER

Return Number

1шт.

6

87746541

WHEEL,340mm OD x 263.5mm W

Roller

2шт.

Arctic QUADTRAC Tractor Application

1шт.

6

47487681R

REMAN-WHEEL ROLLER

STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535 (8/07-), Reman for New P/N 87746541

2шт.

6

47487681C

CORE-WHEEL ROLLER

Return Number

2шт.

7

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16" ID - Incl item 8

12шт.

8

625743C1

BEARING CUP,90mm OD x 18.5mm W

Cup, 625743C1, 3-35/64" OD - Incl with item 7

12шт.

9

87387720

RETAINER

Hardened

6шт.

10

87449801

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

6шт.

11

86984140

O-RING,97mm ID x 6.99mm Thk

O-Ring

6шт.

12

800-21110

SNAP RING,M110, Int

Retaining

6шт.

13

87404689

CAP

Wheel

6шт.

Also Order 246406A1 Plug

1шт.

Выбрано товаров: 27
