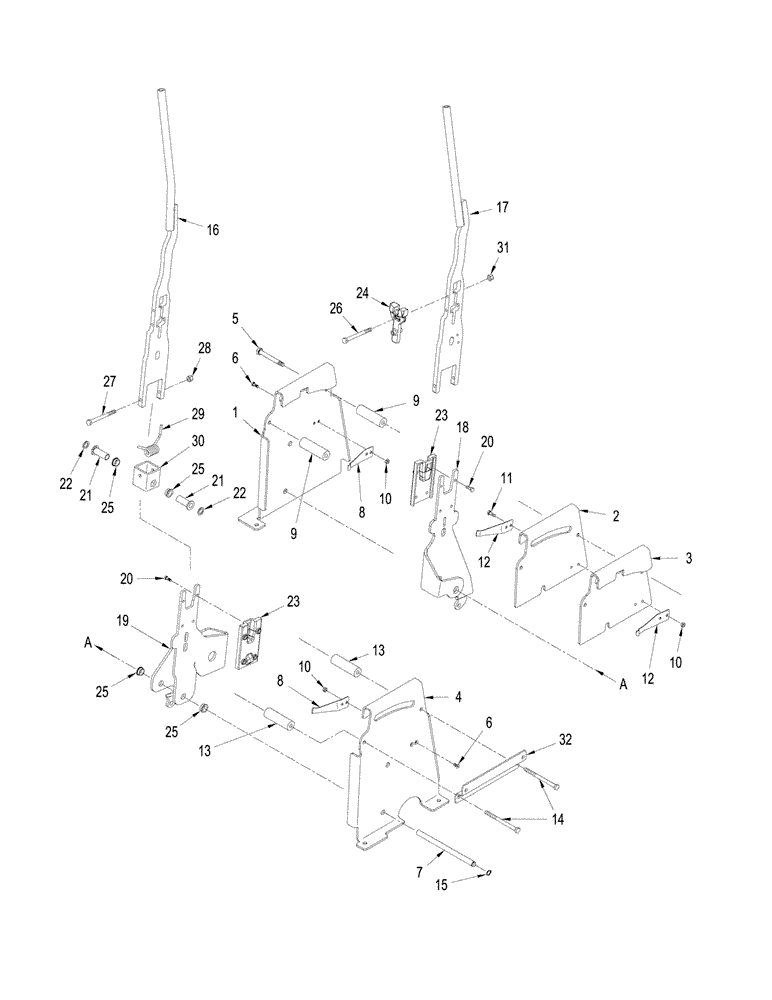

Запчасти Case IH STEIGER 435 (06-03) - SHIFTING UNIT ASSEMBLY, WITH MANUAL SHIFT TRANSMISSION (06) - POWER TRAIN

1

404630A3

PANEL, SIDE

Mounting, LH

1шт.

2

404632A3

PANEL, SIDE

Mounting, Center LH

1шт.

3

404633A3

PANEL, SIDE

Mounting, Center RH

1шт.

4

404631A3

PANEL, SIDE

Mounting, RH

1шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

6

543-704

SCREW,Hex Flat Hd, M6 x 12, 4.8

4шт.

7

430841A1

PIN ASSY.

1шт.

8

409795A2

CLIP, SPRING

2шт.

9

404635A1

SPACER

2шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

12

409796A2

CLIP, SPRING

2шт.

13

404634A1

SPACER

2шт.

14

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

2шт.

15

800-1112

SNAP RING,M12, Ext

1шт.

16

409790A4

LEVER ASSY.

Gear Shifter

1шт.

17

409793A3

LEVER ASSY.

Range Shifter

1шт.

18

404644A2

LEVER ASSY.

Shift, LH

2шт.

19

419660A2

LEVER

Shift, RH

2шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

16шт.

21

398870A1

BUSHING

4шт.

22

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

2шт.

23

419737A1

GUIDE

4шт.

24

419597A2

LINKAGE

Shifter

2шт.

25

431052A1

BUSHING

8шт.

26

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

4шт.

27

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

29

409797A1

TORSION SPRING

2шт.

30

396431A1

TUBE,50 mm Length

Mounting, Square

2шт.

31

832-10406

NUT,M6 x 1, Cl 8

4шт.

32

87426775

BRACKET

Mounting, Shroud

1шт.
