Запчасти Case IH STEIGER 435 (04-36) - ACCUGUIDE, GPS - MOUNTING (04) - ELECTRICAL SYSTEMS

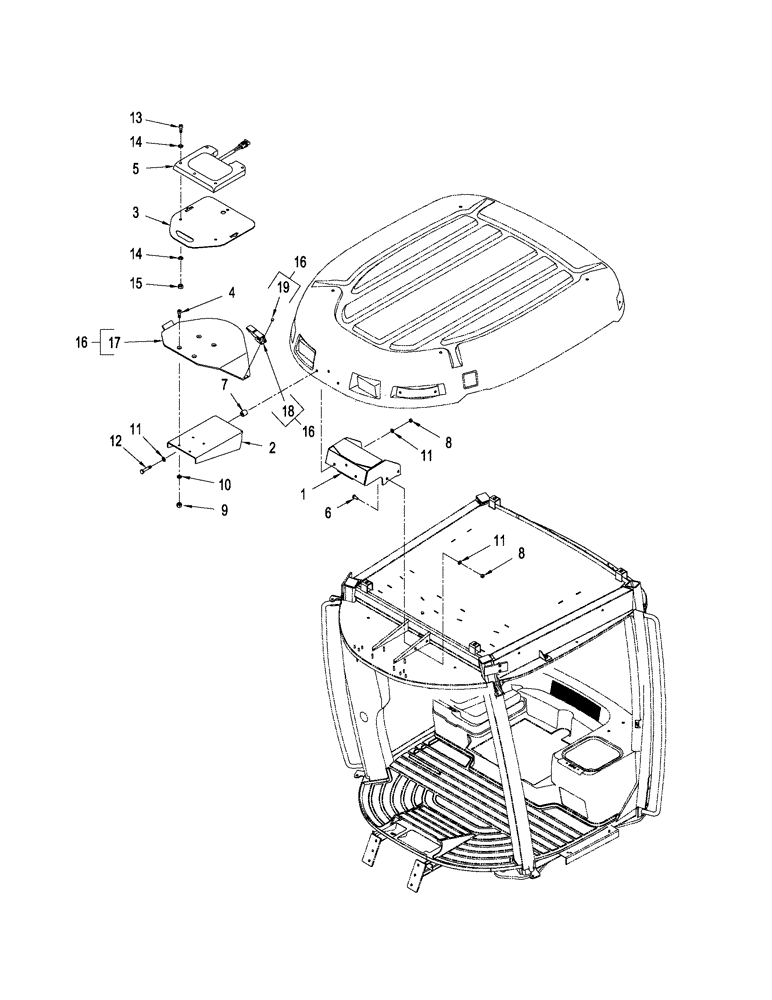

Схема запчастей Case IH STEIGER 435 - (04-36) - ACCUGUIDE, GPS - MOUNTING (04) - ELECTRICAL SYSTEMS
16
1
16
16
4
9
19
8
17
11
11
14
18
15
6
11
7
12
3
2
10
13
5
14
8

Артикул

Название

Примечание

Количество

1

87304763

MOUNTING PARTS

GPS Receiver

1шт.

2

87304767

BRACKET

GPS Receiver Mounting

1шт.

3

87568855

MOUNTING PLATE

Portable Receiver

1шт.

4

843-1825

SCREW,Flat , M8 x 25mm, Cl 4.8

4шт.

5

87308224

MODULE

GPS Receiver

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

7

87304771

SPACER

GPS Mounting

3шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

12

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

13

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

15

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

16

87528080

BASE PLATE

Receiver Mounting Assy., Inc. 17 - 19

1шт.

17

87528045

BASE PLATE

Mounting, GPS Receiver

1шт.

18

87308870

LATCH

GPS Mounting

1шт.

19

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

Выбрано товаров: 19
