Запчасти Case IH STEIGER 435 (04-32) - LAMPS - CAB MOUNTED H.I.D. (04) - ELECTRICAL SYSTEMS

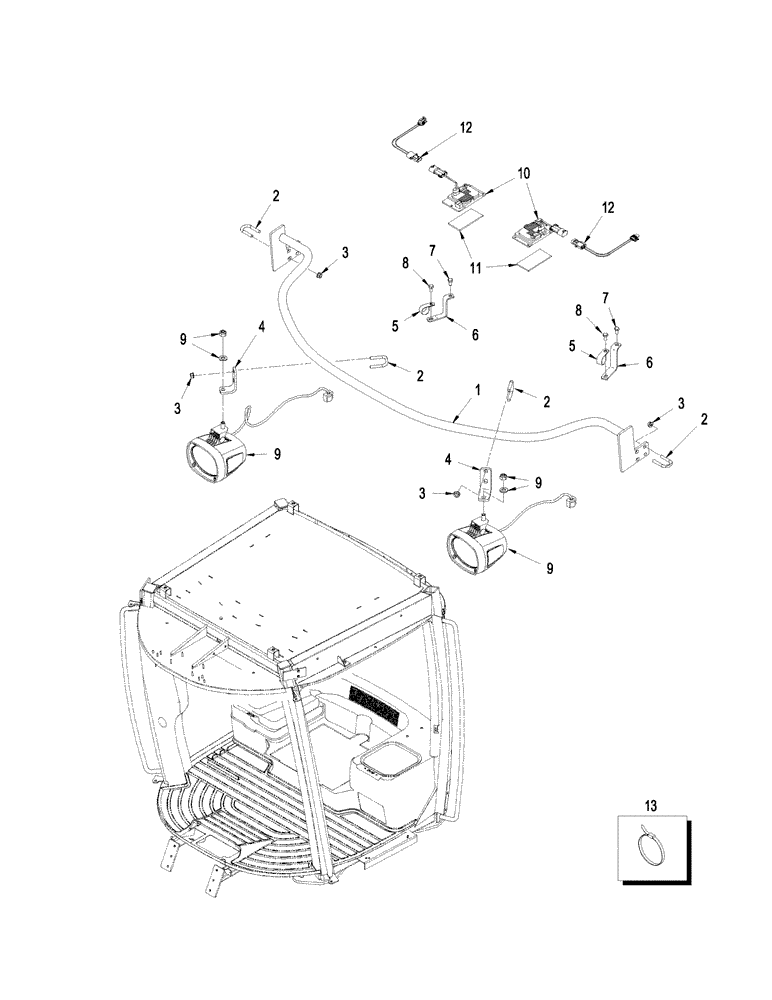

Схема запчастей Case IH STEIGER 435 - (04-32) - LAMPS - CAB MOUNTED H.I.D. (04) - ELECTRICAL SYSTEMS
9
7
6
11
13
12
2
6
3
3
5
9
9
9
2
3
2
8
2
4
12
4
7
3
1
5
8
10

Артикул

Название

Примечание

Количество

1

87488561

BRACKET

Light Mounting

1шт.

2

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

6шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

16шт.

4

87488564

BRACKET

H.I.D. Light Mounting

2шт.

5

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

6

87489627

BRACKET

H.I.D. Bar Support

2шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

9

87475202

LAMP

H.I.D., Cab Mounted

2шт.

10

87475204

BALLAST

H.I.D., Gen 5, 4 Pin, 12 V

2шт.

10

87475204R

REMAN ELECT CONTROL

STEIGER 385, STEIGER 435, STEIGER 535, STEIGER 485, All 4WD TRACTOR, H.I.D., Gen 5, 4 Pin, 12 V (8/07-)

2шт.

10

87475204C

CORE-ELECTRONIC CONT

Return Number

2шт.

11

406450A1

FASTENER

Dual Lock

2шт.

12

87475203

CABLE TERMINAL

Ballast to Rear Harness

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7-8"

4шт.

Выбрано товаров: 15
