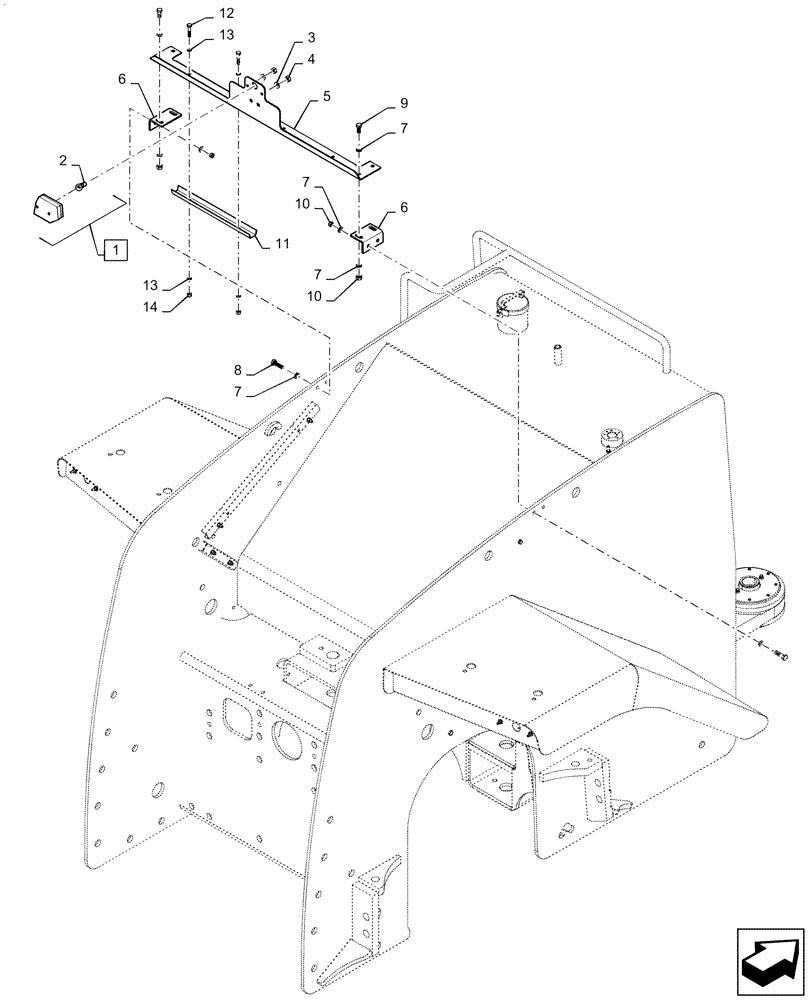

Запчасти Case IH STEIGER 435 (04-27[02]) - LAMPS - LICENSE PLATE, EUROPE (04) - ELECTRICAL SYSTEMS

1

92190C1

LIGHT,12V, 10W

License Plate, Incl 2

1шт.

2

86616249

BULB,12V, 10W

1шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

4

824-1405

NUT,M5, Cl 5

2шт.

5

403277A1

SUPPORT

License Plate

1шт.

6

367194A1

BRACKET

Support

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

11

330164A2

GUARD

Wire Guard

1шт.

12

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
