Запчасти Case IH STEIGER 430 (04-12) - HARNESS - TRANSMISSION, POWER SHIFT (04) - ELECTRICAL SYSTEMS

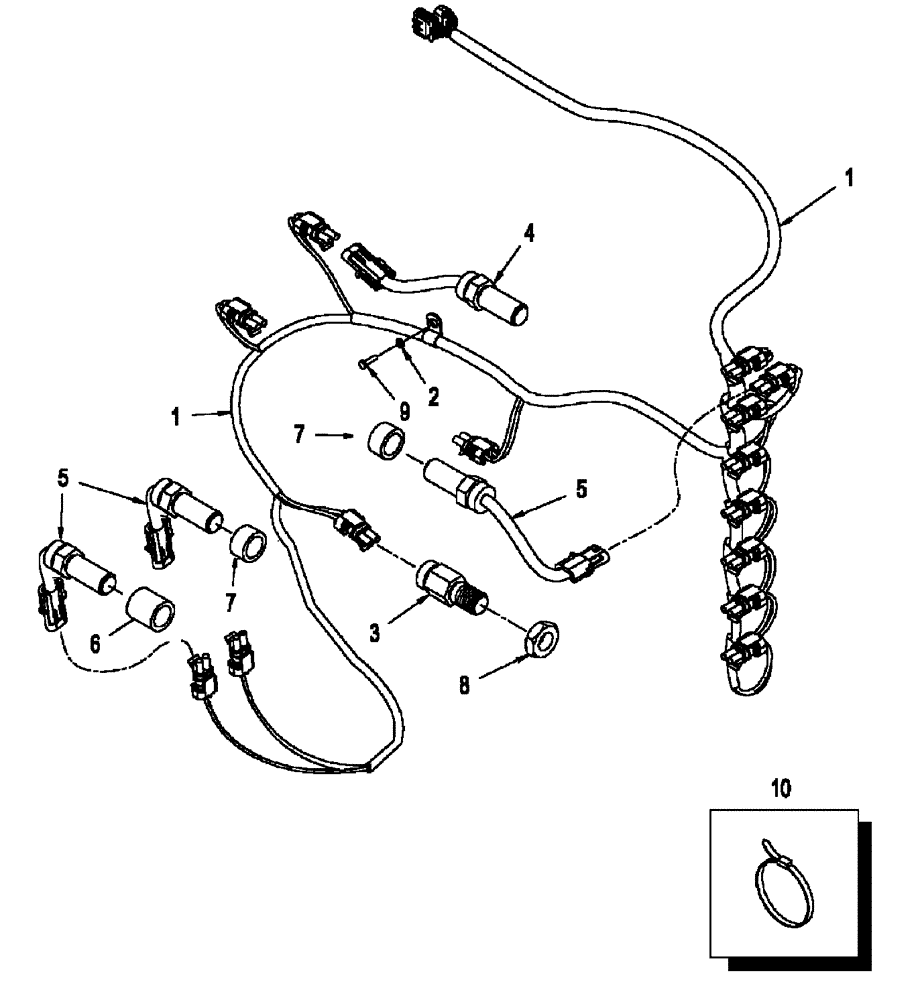

Схема запчастей Case IH STEIGER 430 - (04-12) - HARNESS - TRANSMISSION, POWER SHIFT (04) - ELECTRICAL SYSTEMS
5
1
2
9
1
7
3
4
8
7
6
10
5

Артикул

Название

Примечание

Количество

1

87332140

HARNESS

Transmission, Powershift

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

A186004

SENSOR

For MPH in Output Shaft Housing

1шт.

4

86987513

SENSOR

Pressure

1шт.

5

87449451

SENSOR

Gear Speed

3шт.

6

87351750

SPACER,20.5mm ID x 28.5mm OD x 29.39mm W

29.385 mm

1шт.

7

87351748

SPACER,20.5mm ID x 28.5mm OD x 15.22mm W

15.217 mm

2шт.

8

934120R1

THIN NUT,Thin, M20 x 1.5

4шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

Выбрано товаров: 10
