Запчасти Case IH STEIGER 430 (09-48) - AIR CONDITIONING SYSTEM, STX & STEIGER 380 / 430 (09) - CHASSIS

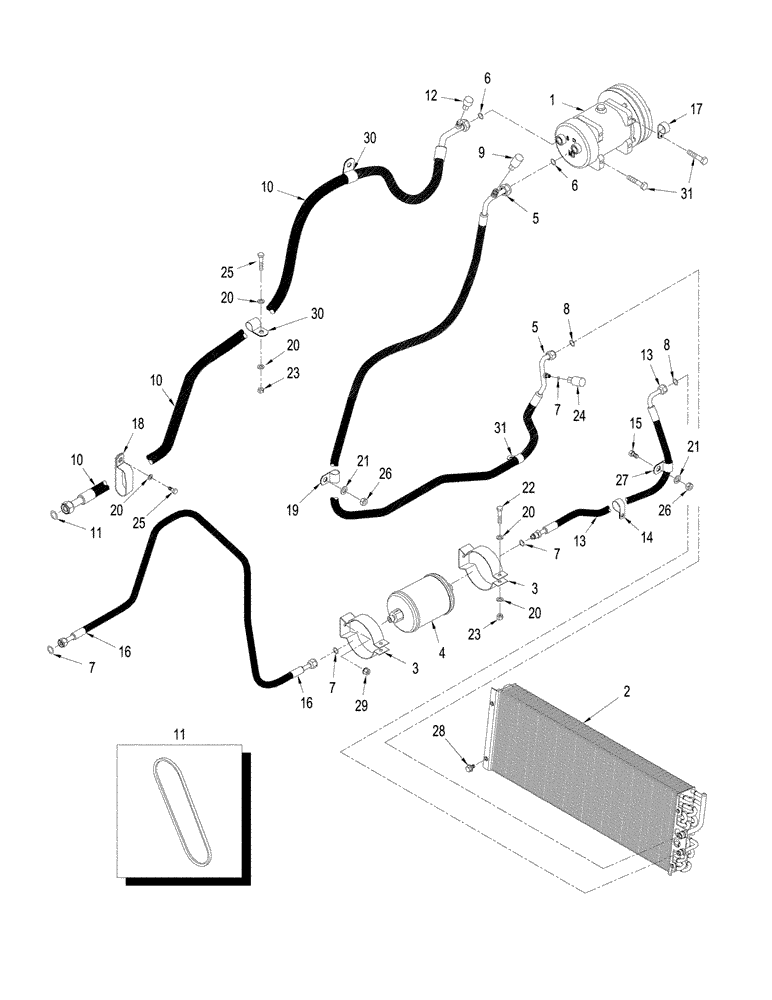

Схема запчастей Case IH STEIGER 430 - (09-48) - AIR CONDITIONING SYSTEM, STX & STEIGER 380 / 430 (09) - CHASSIS
23
7
14
29
1
9
23
22
25
13
30
10
21
3
4
18
15
27
11
21
11
5
31
7
8
5
17
3
16
6
19
6
10
16
13
25
28
2
20
20
20
10
8
30
26
26
20
7
7
12
20
24
31

Артикул

Название

Примечание

Количество

1

86993463

AIRCOND. COMPRESSOR

See Figure: 09-55

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

2

87315600

CONDENSER

1шт.

3

433723A1

CLAMP

2шт.

4

295006A1

RECEIVER-DRYER

134a

1шт.

5

87580495

A/C HOSE

2152 mm (84-3/4"), Compressor to Condensor, Inc. 6 - 9

1шт.

6

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

3шт.

7

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

3шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

2шт.

9

122554A1

CAP

High Side Service Port

1шт.

10

87580494

HOSE ASSY.

3165 mm (124-1/2"),Evaporator to Compressor, Inc. 6, 12

1шт.

11

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Accessary Drive, A/C & Alternator

1шт.

12

122553A1

CAP

Low Side Service Port

1шт.

13

87437756

A/C HOSE

2418 mm (95"), Condensor to Dryer, Inc. 7, 8

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-Type

3шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

16

87447519

A/C HOSE

2190 mm (86-1/4"), Dryer to Evaporator, Inc. 7

1шт.

17

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

18

R54363

CLAMP

2шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

24

284273A2

SWITCH, A/C HIGH PRE

A/C, High Pressure

1шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

27

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

28

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

29

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

30

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

5шт.

31

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

Выбрано товаров: 32
