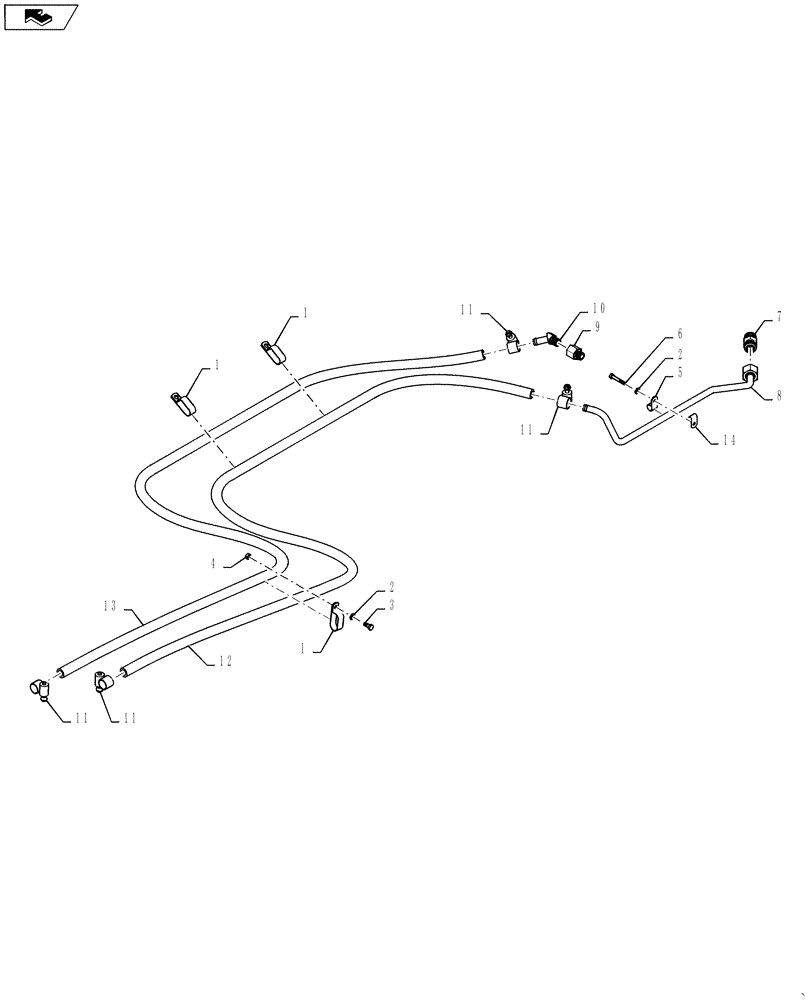

Запчасти Case IH STEIGER 430 (09-46) - HEATER - HOSES, STX & STEIGER 380 / 430 (09) - CHASSIS

1

86984542

END FITTING

1-3/16" fc sl x 27 Or, Inc. 2

1шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

87271484

FITTING

Special, 1/2" BSPP x 1/4" NPT

1шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

5

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

1шт.

6

86984541

RING

Supply, Cut From: 32-050

2шт.

7

86984554

HEATER TUBE,15.88 mm OD

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

11

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

12

R54363

CLAMP

3шт.

13

87343576

BOLT

M7 x 45, CL8.8

1шт.

14

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

15

87356804

HEATER HOSE,9.53 mm ID x 150.00 mm

Return, Cut From: 32-050

1шт.

16

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.
