Запчасти Case IH STEIGER 430 (07-10) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, QUADTRAC TRACTOR (07) - BRAKES

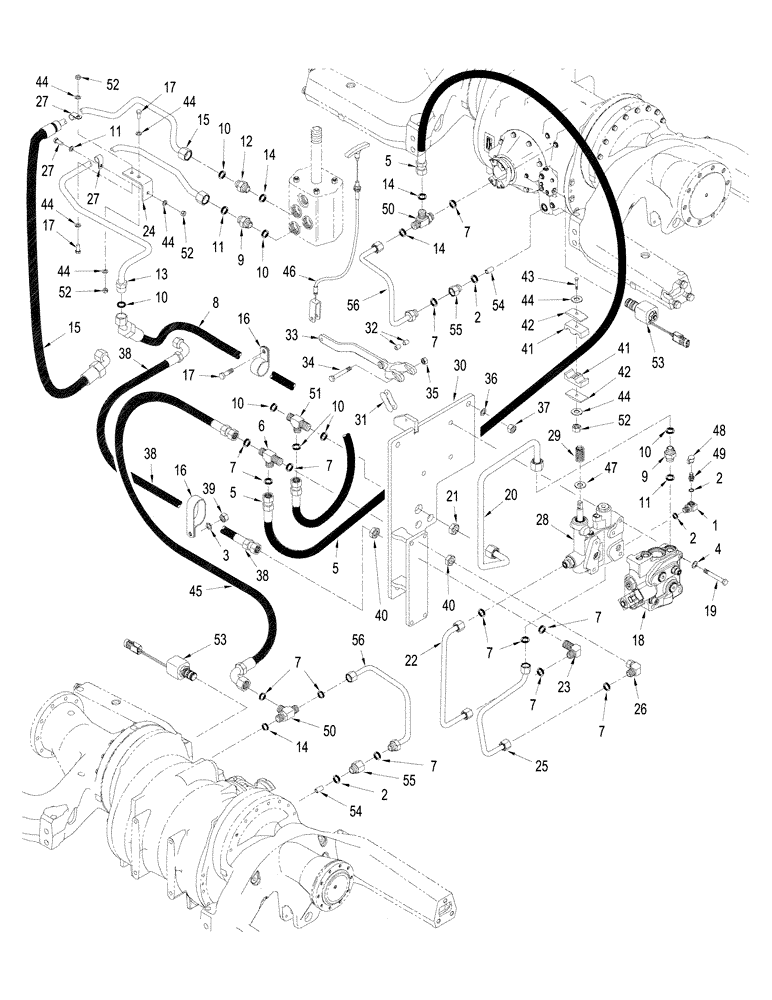

Схема запчастей Case IH STEIGER 430 - (07-10) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, QUADTRAC TRACTOR (07) - BRAKES
44
41
27
52
10
15
41
28
52
17
27
40
53
35
14
3
17
18
11
2
15
32
6
10
56
9
9
7
21
16
50
55
7
43
51
10
39
44
4
5
25
27
7
10
38
38
36
54
44
42
14
1
19
5
14
17
53
29
52
48
8
7
44
26
42
38
10
7
7
33
47
2
52
2
49
5
7
37
24
12
10
44
13
16
11
23
7
56
30
55
45
31
46
44
34
7
7
2
22
20
44
50
40
11
54
14

Артикул

Название

Примечание

Количество

1

428078A1

ELBOW

90, M14 or, Inc. 2

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

383969A2

HOSE ASSY.

1845 mm (73 in)

1шт.

5

437288A1S

HOSE ASSY.

1845 mm (73")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

8

87415316

HOSE ASSY.

2368 mm (93 in)

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 10, 14

1шт.

13

87345208

TUBE,15.90 mm OD

Brake Supply

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

15

87365244

TUBE,15.9 mm OD

Return

1шт.

15

87610054

TUBE,15.9 mm OD

Return

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

P-type

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

18

87672094

VALVE

Regulator, See Figure: 08-14

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

1шт.

21

701-919

BHD LOCK NUT,1" - 14

1шт.

22

449796A1

TUBE

Tow Valve to Hydraulic Return

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 7

1шт.

24

87345210

BRACKET

Mounting, Brake Tubes

1шт.

25

449798A1

TUBE

Lower Tow Valve to Mounting Plate Tee

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 7

1шт.

27

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

P-type

2шт.

28

87679712

VALVE

Control, Tow Block, See Figure: 08-16

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

Mounting, Tow Valve

1шт.

31

242-4412

CHAIN LINK

Tow Valve Arm

1шт.

32

392748A1

SPACER

2шт.

33

390918A3

ARM

Tow Valve

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

87414079

HOSE ASSY.

1298 mm (51 in)

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

40

701-903

NUT,13/16" - 16

3шт.

41

50-2551T1

CLAMP

2шт.

42

50-2533T1

PLATE

2шт.

43

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

45

352112A3

HOSE ASSY.

2336 mm (92 in)

1шт.

45

437267A1S

HOSE ASSY.

2336 mm (92")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

46

349863A2

CABLE

Tow Valve, See Figure: 08-17 for Mounting & Parts

1шт.

47

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 48, 49

1шт.

48

H434163

DUST CAP

1шт.

49

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 2

1шт.

50

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 7, 14

2шт.

51

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 2

1шт.

52

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

53

384977A1

VALVE

Solenoid, Differential Lock, See Figure: 07-12

2шт.

341195A1

ORIFICE

Inc. 2, 7, 54, 55

2шт.

54

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

2шт.

55

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

2шт.

56

413340A1

TUBE

2шт.

Выбрано товаров: 64
