Запчасти Case IH STEIGER 430 (05.100.03[01]) - FILTERS, 430 (00) - PICTORIAL INDEX

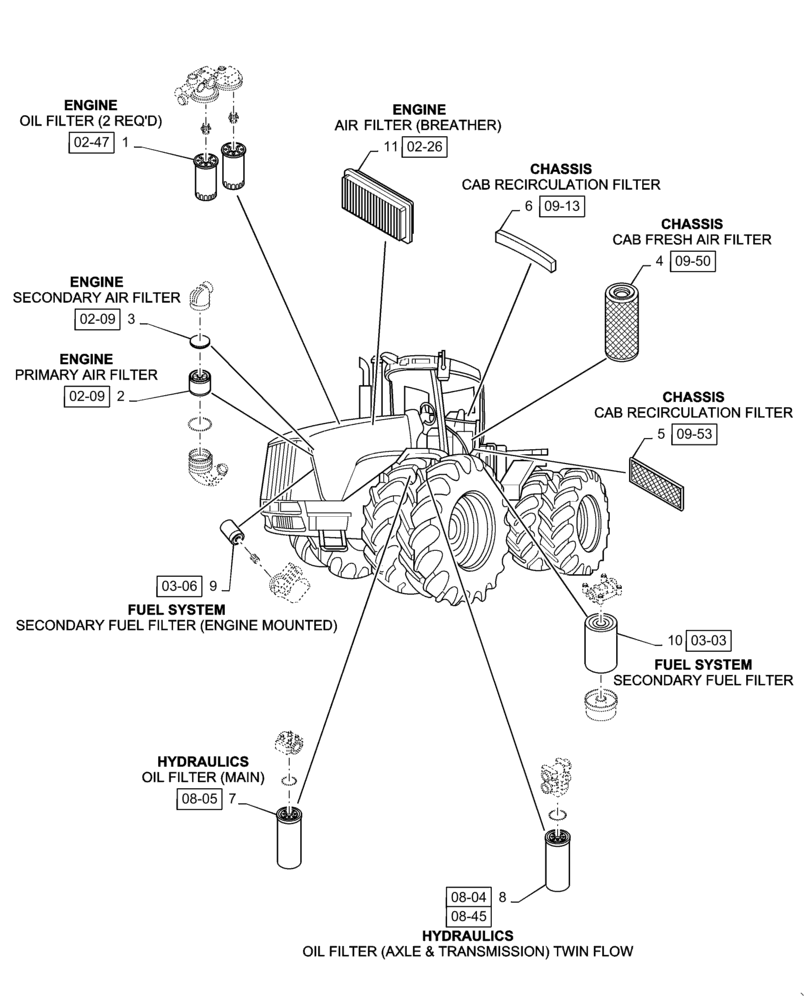

Схема запчастей Case IH STEIGER 430 - (05.100.03[01]) - FILTERS, 430 (00) - PICTORIAL INDEX
6
11
8
3
09-13
03-03
10
08-04
03-06
02-47
9
2
08-45
02-09
08-05
09-53
02-09
1
7
09-50
4
02-26
5

Артикул

Название

Примечание

Количество

1

84346773

ENGINE OIL FILTER,110mm OD x 212mm L, M30 x 2

Spin-On, 2 Req'd

1шт.

2

87727665

AIR FILTER

Primary

1шт.

3

87443714

AIR FILTER

Secondary

1шт.

4

259288A1

CAB FILTER

Fresh Air

1шт.

5

87409377

FILTER

Cab, Recirculation

1шт.

6

87409368

CAB FILTER

Recirculation

1шт.

7

87404986

HYDRAULIC OIL FILTER

Main

1шт.

8

1346028C1

HYDRAULIC OIL FILTER

Axle and Transmission

1шт.

8

1346028C1

HYDRAULIC OIL FILTER

High Flow

1шт.

9

84818745

FUEL FILTER

Engine Mounted

1шт.

10

87410186

FUEL FILTER

Frame Mounted

1шт.

11

504209107

AIR FILTER

Engine Breather

1шт.

Выбрано товаров: 12
