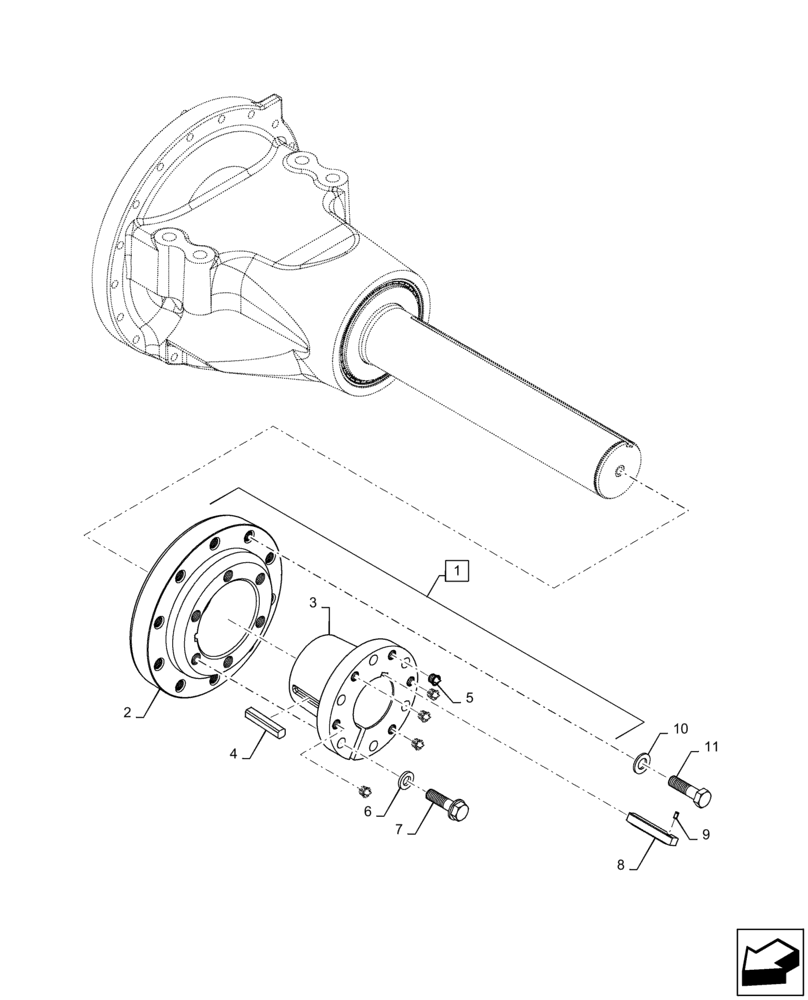

Запчасти Case IH STEIGER 420 (44.511.AD[04]) - WHEEL HUB, 425 SERIES AXLE, ASN ZFF304032 (44) - WHEELS

1

47695577

HUB

Wheel, 127mm Axle, Incl 2 - 7

1шт.

2

47607775

HUB

Wheel

1шт.

3

47606862

BUSHING

127mm Axle

1шт.

4

47606498

KEY,19mm x 19mm x 100mm

1шт.

5

303401A1

PLUG

20mm Hole

5шт.

6

86637816

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

6шт.

7

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

8

A63219

KEY

124mm Long

1шт.

9

38-11608

LOCK PIN,1/4" x 1/2", Slotted

1шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

11

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.
