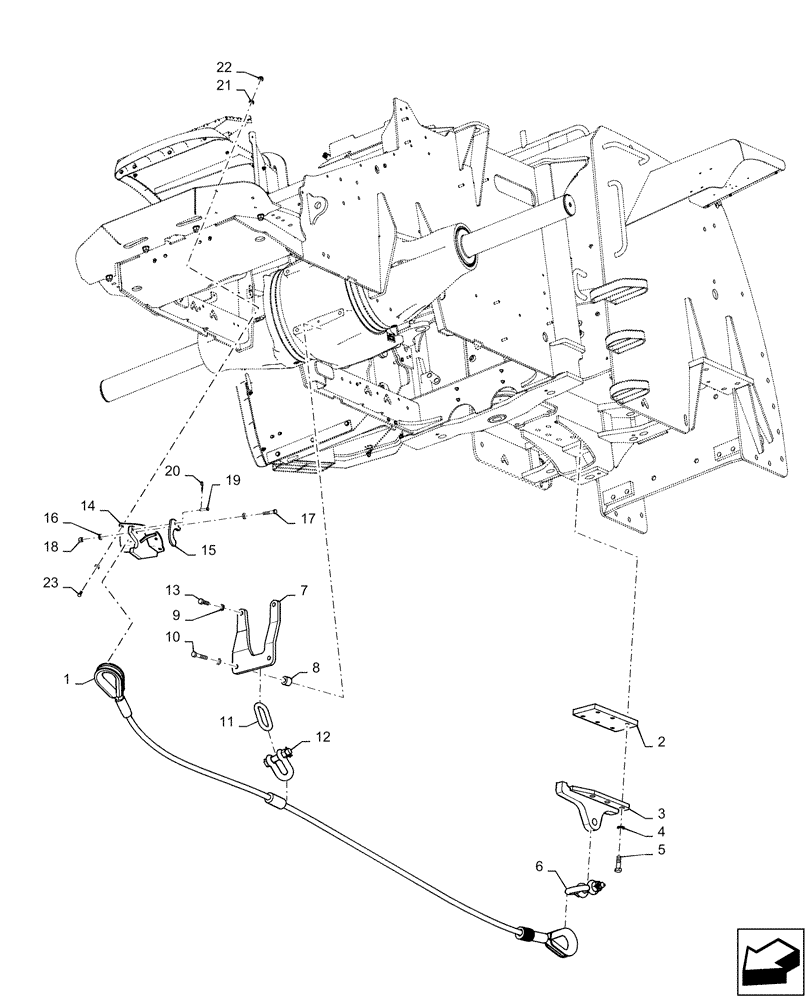

Запчасти Case IH STEIGER 420 (37.100.AF[02]) - TOW CABLE, W/O FRONT BALLAST (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

379523A1

CABLE ASSY.,31.75mm OD x 4750mm L

Tow Cable

1шт.

2

87548081

MOUNTING PLATE

Tow Cable

1шт.

3

87548080

MOUNTING PLATE

Tow Cable

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

6шт.

5

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

6шт.

6

87539843

SHACKLE

Anchor

1шт.

7

84335072

MOUNT

Tow Cable - Front Axle

1шт.

8

409751A1

SPACER,21.5mm ID x 50mm OD x 40mm Thk

2шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

11

409753A1

LINK,196.85mm L

1шт.

12

369838A1

SHACKLE

Tow Cable

1шт.

13

190003809441

SCREW,M20 x 55mm, Cl 10.9

2шт.

14

47411145

TOW HOOK

RC Gray

1шт.

15

47361159

LATCH

Tow Cable Grey

1шт.

16

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

17

627-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

M16 x 80mm, Cl10.9

1шт.

18

832-10416

NUT,M16 x 2, Cl 8

1шт.

19

728-1255

CLEVIS PIN,M12 x 55mm OAL

1шт.

20

435425A1

PIN

Hair Pin

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

22

829-1412

NUT,M12, Cl 10.9

4шт.

23

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.
