Запчасти Case IH STEIGER 420 (37.100.AF[01]) - TOW CABLE, W/ FRONT BALLAST (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

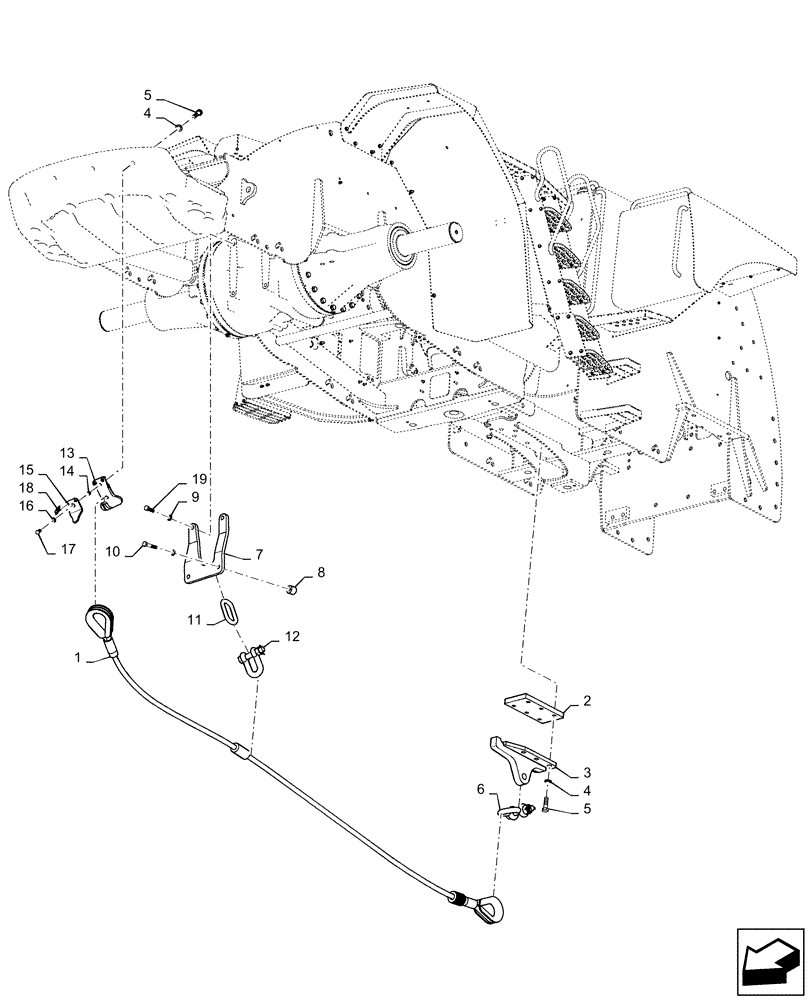

Схема запчастей Case IH STEIGER 420 - (37.100.AF[01]) - TOW CABLE, W/ FRONT BALLAST (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
4
18
1
10
5
3
11
17
16
8
15
12
14
19
9
4
13
2
6
7
5

Артикул

Название

Примечание

Количество

1

379523A1

CABLE ASSY.,31.75mm OD x 4750mm L

Tow Cable

1шт.

2

87548081

MOUNTING PLATE

Tow Cable

1шт.

3

87548080

MOUNTING PLATE

Tow Cable

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

7шт.

5

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

7шт.

6

87539843

SHACKLE

Anchor

1шт.

7

84335072

MOUNT

Front Axle

1шт.

8

409751A1

SPACER,21.5mm ID x 50mm OD x 40mm Thk

2шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

11

409753A1

LINK,196.85mm L

1шт.

12

369838A1

SHACKLE

Tow Cable

1шт.

13

84194283

MOUNT

Front Tow Cable

1шт.

14

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

15

84194615

LATCH HOOK

Tow Cable

1шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

18

19-1041

LOCK PIN,7/16" x 2"

1шт.

19

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 19
