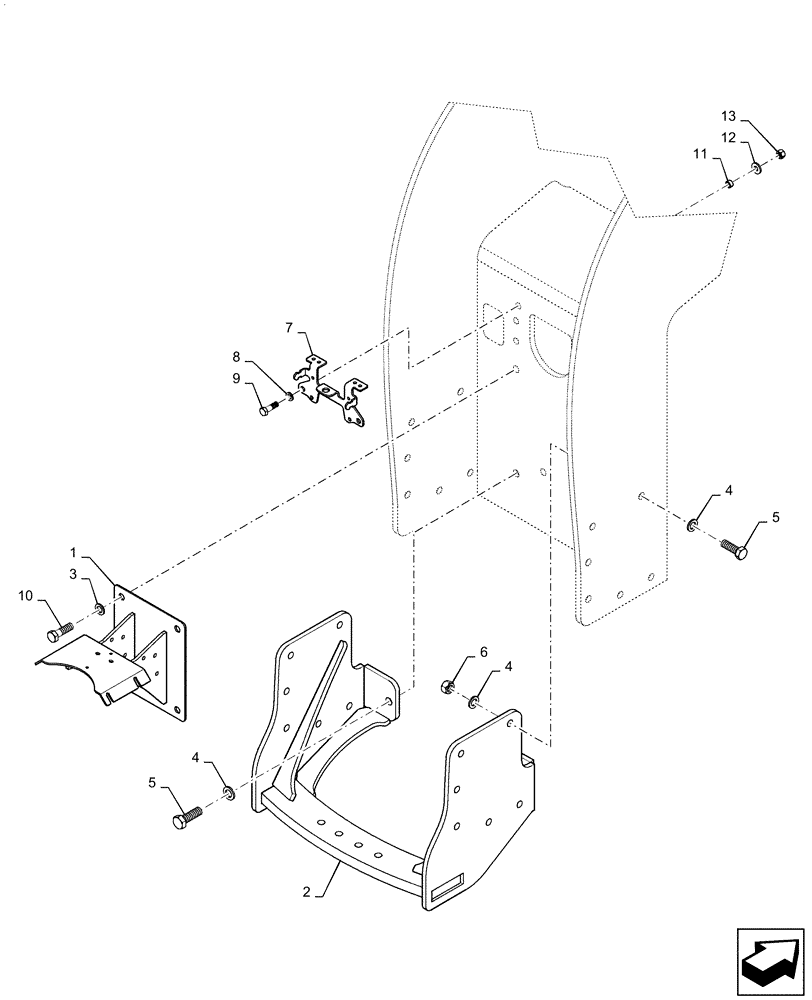

Запчасти Case IH STEIGER 420 (37.100.AB[03]) - OFFSET DRAWBAR HANGER, W/O PTO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87311759

MOUNTING PARTS

PTO Cover

1шт.

2

84151704

HANGER

Offset Drawbar

1шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

5

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

6

829-1424

NUT,M24, Cl 10

12шт.

7

84271889

BRACKET

Optional PTO

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

10

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

4шт.

11

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

12

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

13

829-1416

NUT,M16, Cl 10

2шт.
