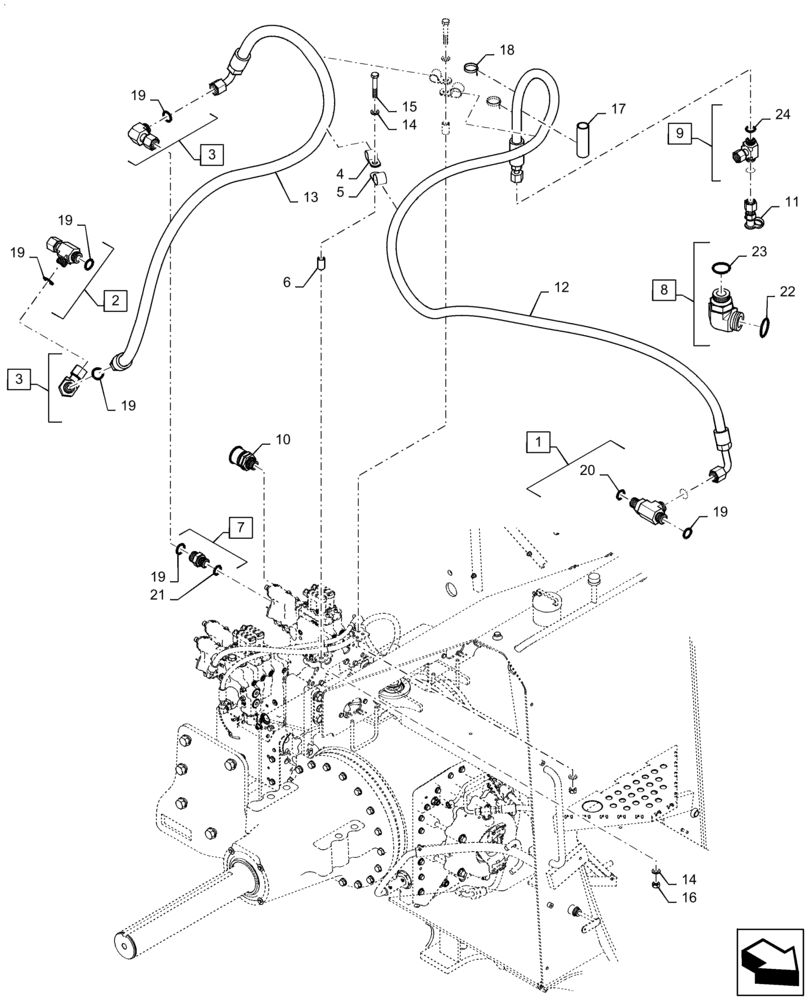

Запчасти Case IH STEIGER 420 (33.220.AC) - TRAILER HYDRAULIC BRAKES LINES (33) - BRAKES & CONTROLS

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 19 - 20

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 19

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 19

2шт.

4

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

6

414937A1

SPACER

9.25mm x 13.72mm x 22.4mm

2шт.

7

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 19, 21

1шт.

8

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 22 - 23

1шт.

9

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 24

1шт.

10

87371306

COUPLING, QUICK, FEM

Trailer Brake

1шт.

11

190119A1

COUPLING

Diagnostic Port

1шт.

12

84315146

HOSE ASSY.,9.53mm ID x 2058mm L, SAE 100R1

Trailer Brake Pressure

1шт.

13

87713536

HOSE

Trailer Brake Drain

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

86020619

SLEEVE

25.4mm ID x 570mm Long

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

20

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

23

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
