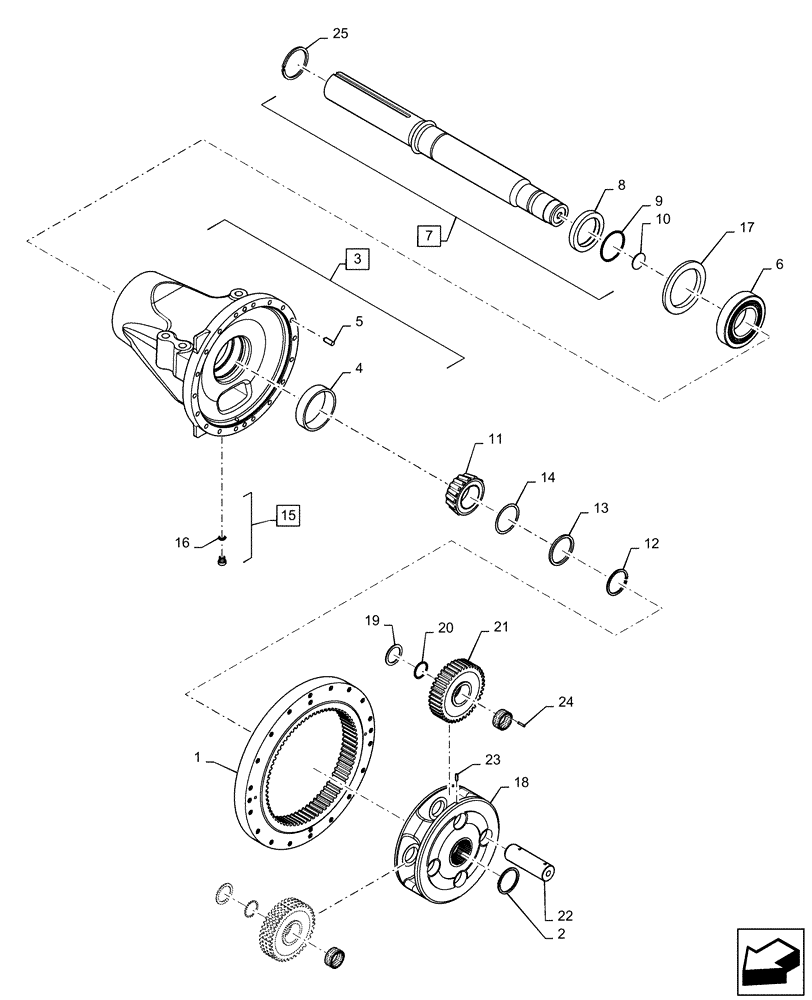

Запчасти Case IH STEIGER 420 (25.108.040[01]) - VAR - 424823, 424824 - AXLE CARRIER ASSY, 425 SERIES, HEAVY DUTY (BSN ZFF308257) (25) - FRONT AXLE SYSTEM

1

360761A1

GEAR, RING

76T

1шт.

2

101-11350

SNAP RING,#350, Ext

1шт.

3

84120549

BEARING CARRIER

Axle, 127mm, 425 Series, Incl 4 - 5

1шт.

4

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

1шт.

5

837-16040

DOWEL,M16 x 40

2шт.

6

84182188

BEARING ASSY

Complete

1шт.

7

84188297

4WD AXLE ASSY

Axle, 127mm Bar, Incl 8 - 10

1шт.

8

84173880

BUSHING,127.4mm ID x 210mm OD x 26mm L

1шт.

9

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

10

1981270C1

INSERT

Axle Wear

1шт.

11

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

1шт.

12

243856A1

RING, SNAP

Axle Retaining

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

Thrust

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

221578A1

PLUG,M18 x 1.5 ORB

Incl 16

1шт.

16

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

84600284

OIL SEAL

Axle Shaft

1шт.

18

388370A1

PINION CARRIER

Heavy Duty

1шт.

19

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Planetary Gear

8шт.

20

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

Planetary Gear

4шт.

21

310694A2

PLANETARY GEAR,29T

29T

4шт.

22

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planetary Gear

4шт.

23

838-3826

PIN,M8 x 26, Coiled

4шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

Planetary Gear

264шт.

25

84198540

COUPLING RING

127mm Axle

4шт.
