Запчасти Case IH STEIGER 420 (25.102.AD[02]) - VAR - 424823, 424824, 424268 - FRONT AXLE PINION CARRIER COVER (25) - FRONT AXLE SYSTEM

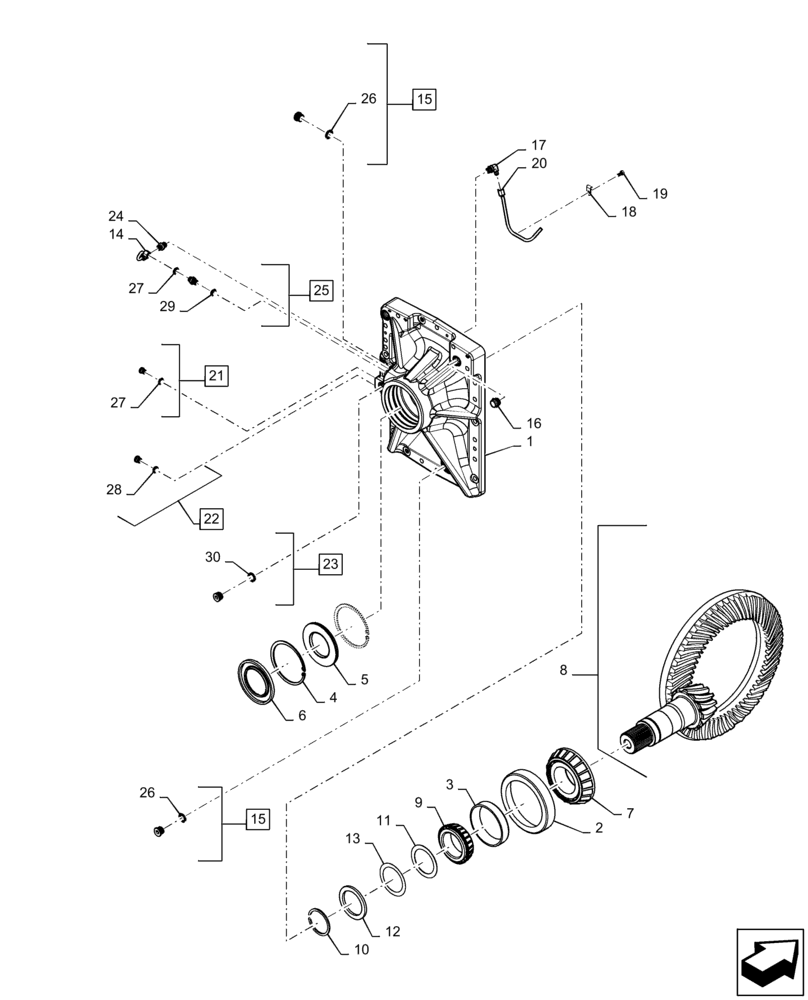

Схема запчастей Case IH STEIGER 420 - (25.102.AD[02]) - VAR - 424823, 424824, 424268 - FRONT AXLE PINION CARRIER COVER (25) - FRONT AXLE SYSTEM
26
16
6
21
2
4
10
3
8
29
11
30
15
19
12
22
5
25
28
24
23
9
15
26
1
18
13
7
17
14
27
27
20

Артикул

Название

Примечание

Количество

1

84251899

COVER ASSY

Cover

1шт.

2

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

3

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

4

100-21550

SNAP RING,5.50", Int, #550

2шт.

5

87432424

OIL SEAL

Pinion Input Shaft

1шт.

6

284186A1

SEAL,88.9mm ID x 146.15mm OD x 10mm Thk

Pinion

1шт.

7

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

8

302259A2

BEVEL GEAR

Set, Ring And Pinion, Front Axle

1шт.

9

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

10

229515A2

RING, SNAP

Pinion Shaft Retainer

1шт.

11

191713A1

SPACER

83mm x 110mm x 1.5mm

1шт.

12

228968A2

SPACER

83mm x 110mm x 7mm

1шт.

13

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

13

191712A1

SHIM,0.130mm Thk

1шт.

13

191711A1

SHIM,0.101mm Thk

1шт.

13

191709A1

SHIM,0.076mm Thk

1шт.

14

86991772

TUBE,8 mm OD

1шт.

15

221579A1

PLUG,M22 x 1.5 ORB

Incl 26

2шт.

16

553-101

PLUG,M22 x 1.5, ORB, Plastic

3шт.

17

86985636

ELBOW

5/16" x 3/8", 1.7mm Orifice

1шт.

18

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

19

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

20

234433A1

TUBE

Front Lube

1шт.

21

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 27

1шт.

22

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 28

1шт.

23

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 30

1шт.

24

86985637

FITTING

9/16" - 18 x M14 x 1.5, Incl 27, 29

1шт.

25

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 27, 29

1шт.

26

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

27

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

28

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

29

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

30

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
