Запчасти Case IH STEIGER 400 (25.102.AS[02]) - FRONT AXLE PINION SHAFT (25) - FRONT AXLE SYSTEM

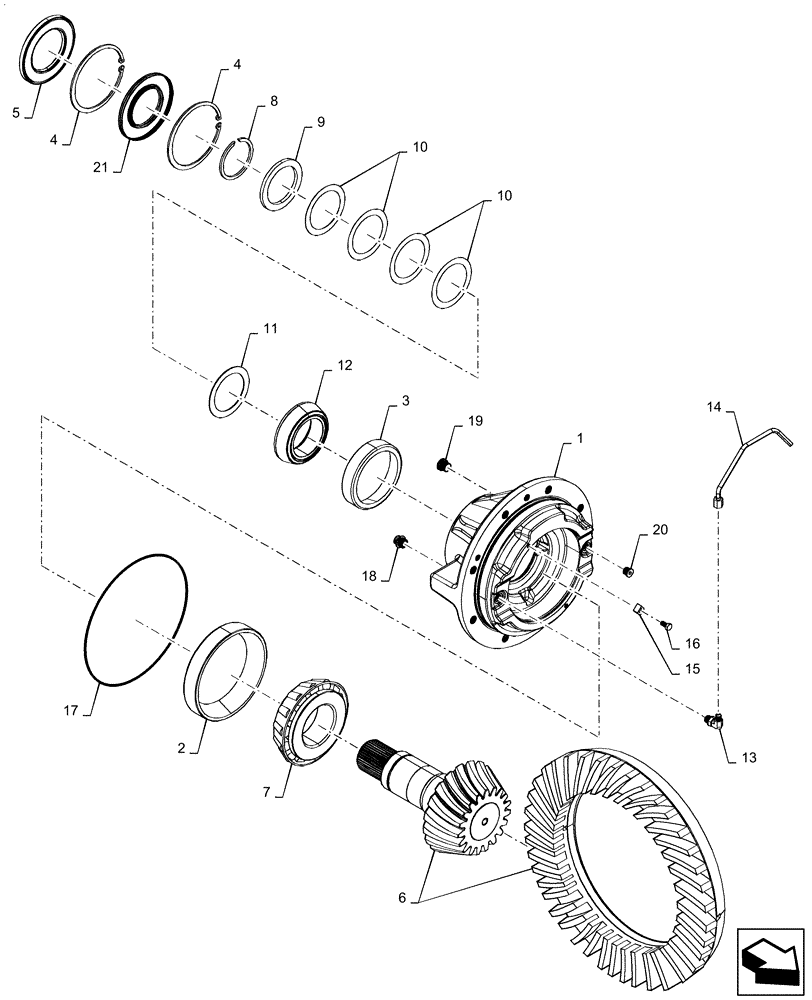

Схема запчастей Case IH STEIGER 400 - (25.102.AS[02]) - FRONT AXLE PINION SHAFT (25) - FRONT AXLE SYSTEM
9
10
19
8
13
15
4
12
10
7
16
6
3
17
1
4
11
21
2
5
14
18
20

Артикул

Название

Примечание

Количество

1

328421A5

COVER

Pinion Carrier Front

1шт.

2

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

3

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

4

100-21550

SNAP RING,5.50", Int, #550

2шт.

5

284186A1

SEAL,88.9mm ID x 146.15mm OD x 10mm Thk

Yoke

1шт.

6

87522606

GEAR SET

Front Bevel And Pinion

1шт.

7

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

8

229515A2

RING, SNAP

4.0mm

1шт.

9

228968A2

SPACER

83mm ID x 110mm OD x 7mm Thk

1шт.

10

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

10

191712A1

SHIM,0.130mm Thk

1шт.

10

191711A1

SHIM,0.101mm Thk

1шт.

10

191709A1

SHIM,0.076mm Thk

1шт.

11

191713A1

SPACER

83mm ID x 110mm OD x 1.5mm Thk

1шт.

12

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

13

86985636

ELBOW

1.6mm Orifice

1шт.

14

284180A1

PIPE

Lube Jumper

1шт.

15

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

17

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

18

553-102

PLUG,M18 x 1.5, ORB, Plastic

1шт.

19

221578A1

PLUG,M18 x 1.5 ORB

1шт.

20

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

21

87432424

OIL SEAL

Pinion Input Shaft

1шт.

Выбрано товаров: 24
