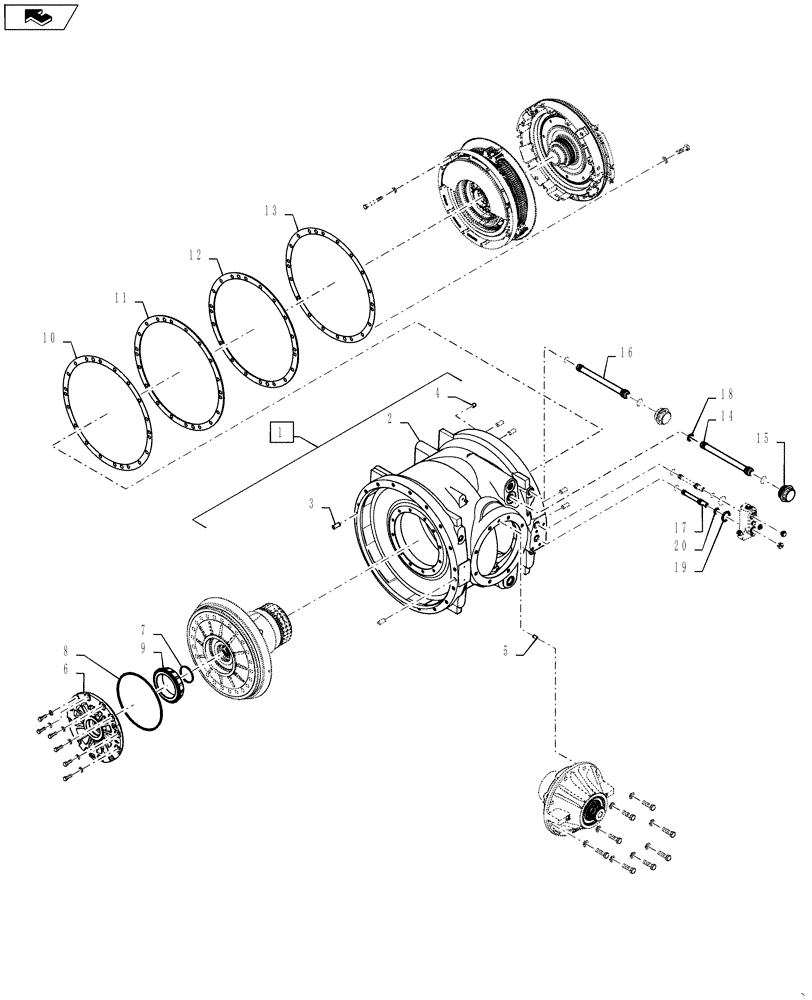

Запчасти Case IH STEIGER 400 (25.102.AD[02]) - AXLE - ASSY - CENTER SECTION - FRONT W/ DIFF LOCK (25) - FRONT AXLE SYSTEM

1

84604410

Housing, Center Section W / Diff Lock - Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Housing - Center Section - Incl in 1

1шт.

3

837-16040

DOWEL,M16 x 40

6шт.

4

837-12025

DOWEL,M12 x 25

1шт.

5

87520609

PLUG

5mm Anvil

1шт.

6

47497743

BEARING CARRIER

LH Differential

1шт.

7

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Bearing Seal

1шт.

8

86625090

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

1шт.

9

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

10

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

11

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

12

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

13

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

14

298567A1

TUBE,11.85 mm OD, 156 mm Length

1шт.

15

553-105

Plug, Plastic, M33 Thread

1шт.

16

84468365

TUBE

Tube, Service Brake Jumper

1шт.

17

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

18

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

19

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

4шт.
