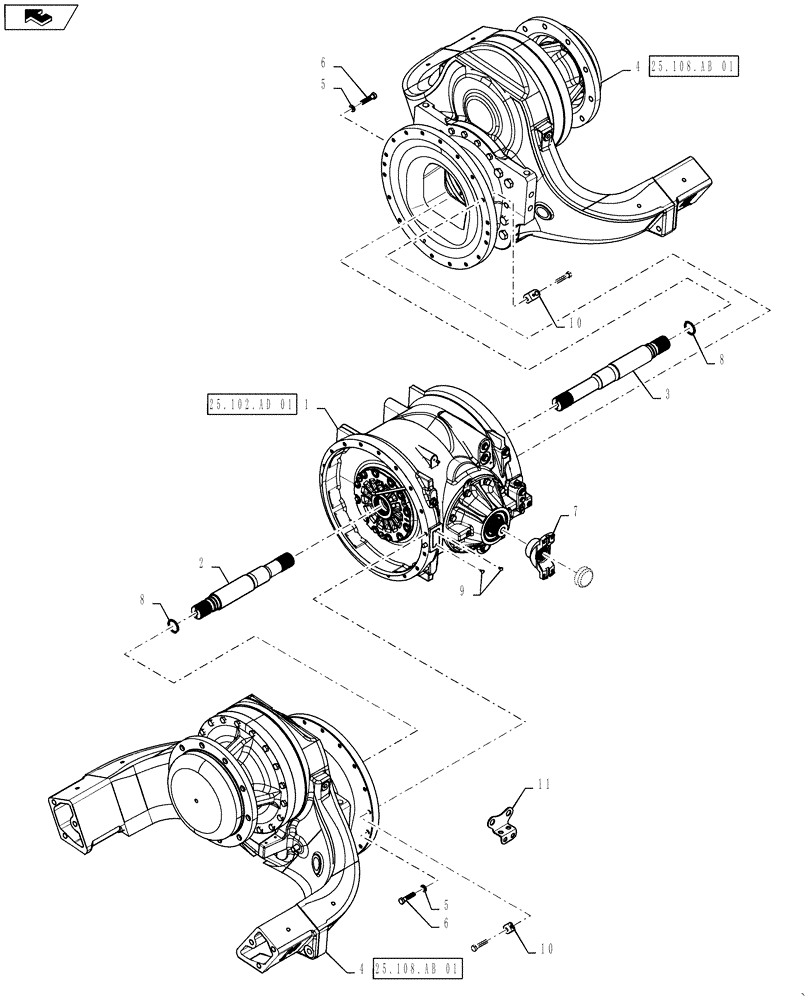

Запчасти Case IH STEIGER 400 (25.100.AA[02]) - AXLE - ASSY - FRONT TRACK W/DIFF LOCK (25) - FRONT AXLE SYSTEM

1

NSS

NOT SOLD SEPARAT

Center Section, Front w/Diff Lock - Ref. Figure 25.102.AD(01) & 25.102.AD(02)

1шт.

2

84467440

AXLE,570mm L

80 IN Right Hand

1шт.

3

84467441

AXLE,662mm L

80 IN Left Hand

1шт.

4

NSS

NOT SOLD SEPARAT

Upbox with Spacers - Ref. Figure 25.108.AB(01)

2шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

34шт.

6

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

36шт.

7

395209A1

YOKE

Sliding

1шт.

8

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.55mm x 56.7mm CL 5

2шт.

9

301-1434

DRIVE SCREW,Drive, #6 x 1/4"

2шт.

10

87306552

BRACKET

Tension Cylinder Hose

2шт.
