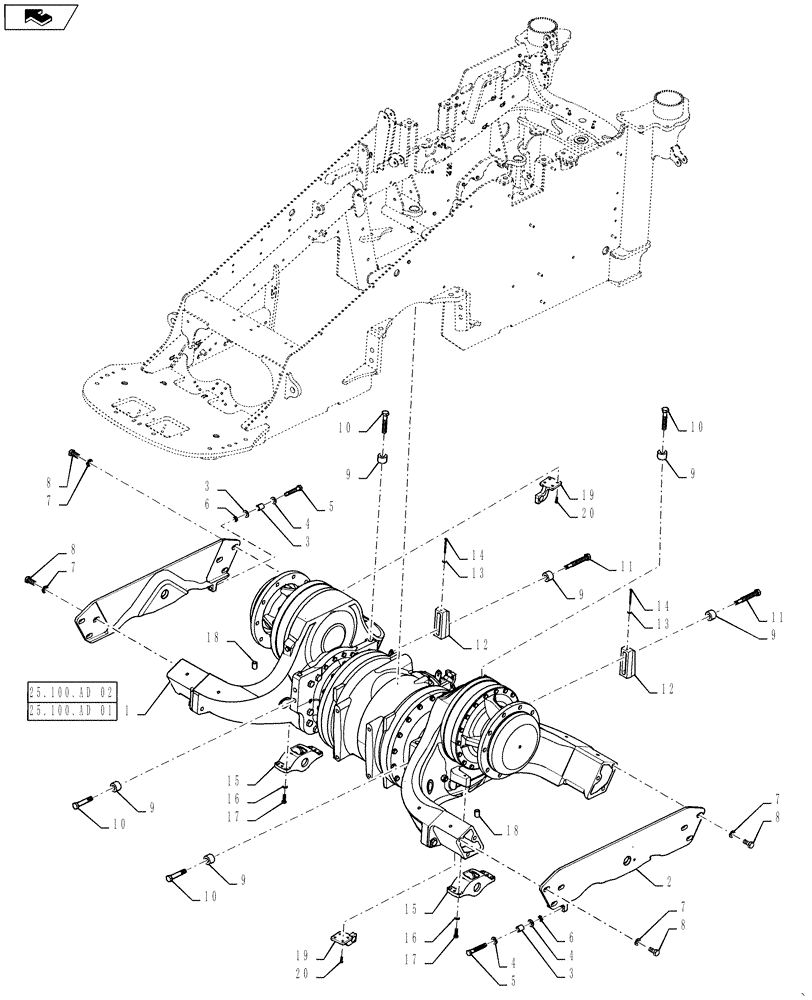

Запчасти Case IH STEIGER 400 (25.100.AA[01]) - AXLE - MOUNTING - FRONT (25) - FRONT AXLE SYSTEM

1

84467460

4WD AXLE ASSY

Front Track w/ Diff Lock

1шт.

1

84539516

4WD AXLE ASSY

Front Track w/o Diff Lock

1шт.

2

84467437

PLATE

Yoke

2шт.

3

87439070

SPACER

Alignment

2шт.

4

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

5

87439071

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

HH, M20 x 130mm

2шт.

6

829-4420

THIN NUT,M20 x 2.5, Cl 05

2шт.

7

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

8

9780129

BOLT,Hex, M24 x 50mm, Cl 10.9

12шт.

9

87447339

SPACER

M24 Bolt

12шт.

10

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

11

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

4шт.

12

87425780

WEDGE

Block

2шт.

13

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

14

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

15

84544933

SUPPORT

Inboard Undercarriage

2шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

17

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

18

837-12030

DOWEL,M12 x 30mm OAL

2шт.

19

84537342

PLATE

Track Adjustment

2шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.
