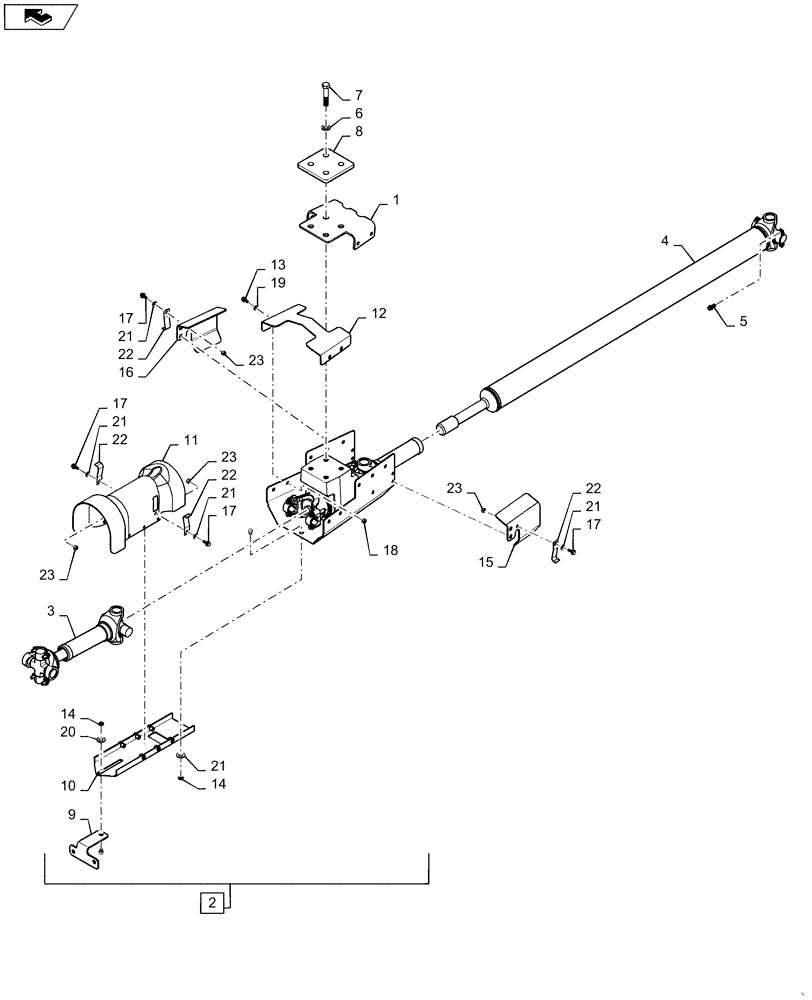

Запчасти Case IH STEIGER 400 (14.100.AR[11]) - PTO DRIVELINES & MOUNTING - EUROPE (14) - MAIN GEARBOX & DRIVE

1

404604A1

BRACKET

Articulation Hose Hanger, Serial Range: -`0

1шт.

Reference Figure 14.100.AR(10)

1шт.

2

404603A1

BEARING ASSY

PTO Hanger, Serial Range: -`0

1шт.

Reference Figure 14.100.AR(12)

1шт.

3

84216132

PTO SHAFT

Articulation, Serial Range: -`0

1шт.

Reference Figure 23.314.AG(02)

1шт.

4

84426531

DRIVE SHAFT

Rear, Serial Range: -`0

1шт.

Reference Figure 23.314.AG(02)

1шт.

5

868-10020

12 PT SCREW,M10 x 20mm, Cl 12.9

16шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

7

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

8

84273368

SPACER

PTO Hanger

1шт.

9

84274237

BRACKET, SUPPORTING

PTO Shield

1шт.

10

84273365

BRACKET, SUPPORTING

PTO Shield

1шт.

11

84409734

SHIELD

Shield, PTO Articulation

1шт.

12

84327637

SHIELD

Shield, PTO Articulation

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

14

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

15

84409732

SHIELD

Shield Assy, PTO LH

1шт.

16

84409736

SHIELD

Shield Assy., PTO RH

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

14шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

20

87389396

BELLEVILLE WASHER,M14 Bolt Size x 30mm OD x 2.4mm Thk

Belleville, 14 x 30 x 2.4 ZNM

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Lock, 18mm ZNM

4шт.

22

84409709

ACCESS COVER

Cover, Grease Zirk Access

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

L116943

SECURING STRAP

8шт.
