Запчасти Case IH STEIGER 400 (90.156.AL[01]) - WINDOW - MOUNTING - FRONT & REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

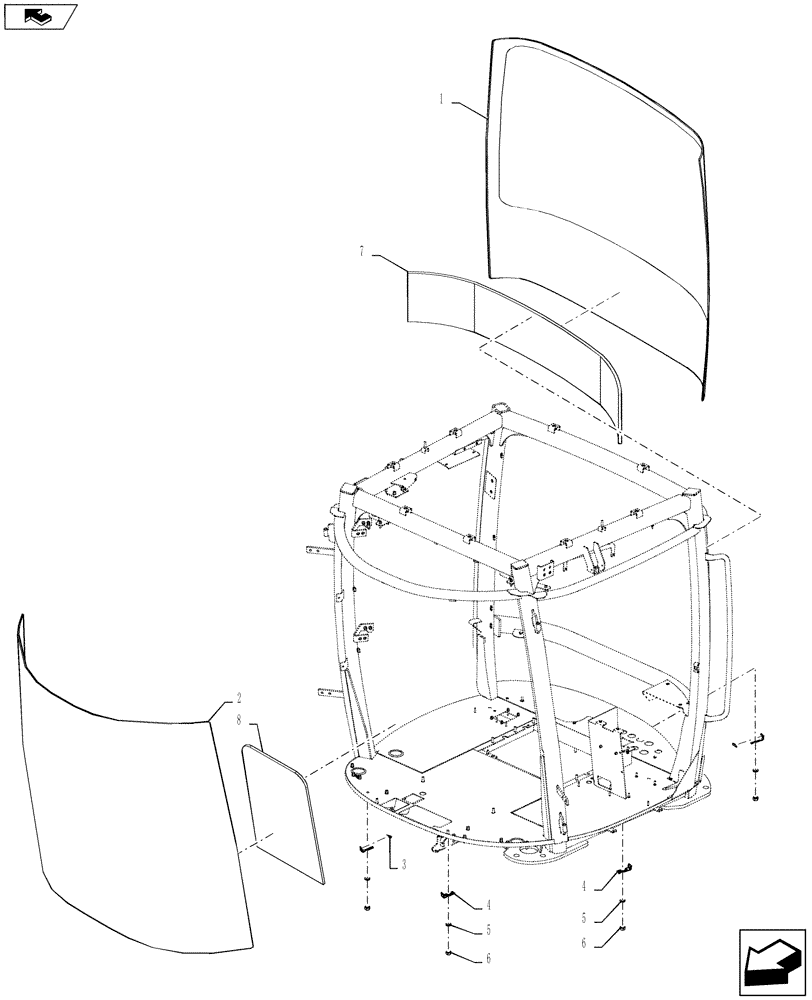

Схема запчастей Case IH STEIGER 400 - (90.156.AL[01]) - WINDOW - MOUNTING - FRONT & REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
7
4
3
2
1
5
4
6
home
8

Артикул

Название

Примечание

Количество

1

84358821

GLASS

Rear

1шт.

2

84358819

WINDSHIELD

Windshield, Standard - North America

1шт.

2

84358820

WINDSHIELD

Windshield, Laminated - Europe

1шт.

3

87543673

SPACER

Glass Bonded

48шт.

4

117707A3

CLAMP

Window

5шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

7

259462A1

FOAM INSULATION

1шт.

8

87312395

FOAM INSULATION

Barrier, Front Windshield

1шт.

Выбрано товаров: 9
