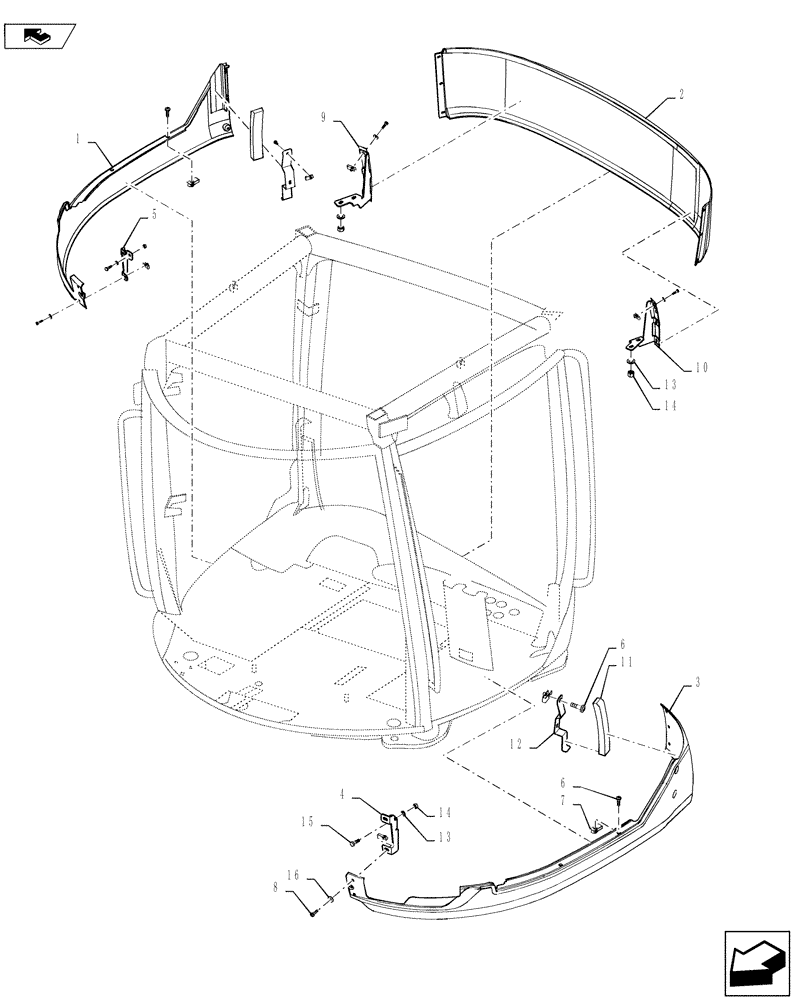

Запчасти Case IH STEIGER 400 (90.150.AD[02]) - CAB - SKIRTS - DELUXE CAB - SUSPENDED CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84478692

SKIRT COVER

Cover, Susp. Cab, Std. Skirt, RH Case

1шт.

2

84371576

SKIRT COVER

Cover, Susp. Cab, Rear Skirt, Red

1шт.

3

84384332

SKIRT COVER

Cover, Susp. Cab, Std. Skirt, LH Case

1шт.

4

84372061

BRACKET, SUPPORTING

Front Skirt Mounting

1шт.

5

84478662

BRACKET

Front Skirt Mounting

1шт.

6

47447686

SCREW,Phillips Drive, Pan HD, M6 x 25mm, Cl 4.8

8шт.

7

404882A1

SPRING NUT,M6

Spring Nut

18шт.

8

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

10шт.

9

84371547

BRACKET, SUPPORTING

Side Skirt Mounting

1шт.

10

84371548

BRACKET, SUPPORTING

Side Skirt Mounting

1шт.

11

403325A2

FOAM,30mm x 50mm x 250mm

Spacer

2шт.

12

47448852

BRACKET

Side Skirt

2шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

15

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

17

369708A1

CLAMP

Double Tube - (Not Shown)

2шт.

18

47447682

RUBBER WASHER,5.8mm ID x 15.9mm OD x 2.4mm Thk

EPDM Rubber (Not Shown)

10шт.

19

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

(Not Shown)

4шт.
