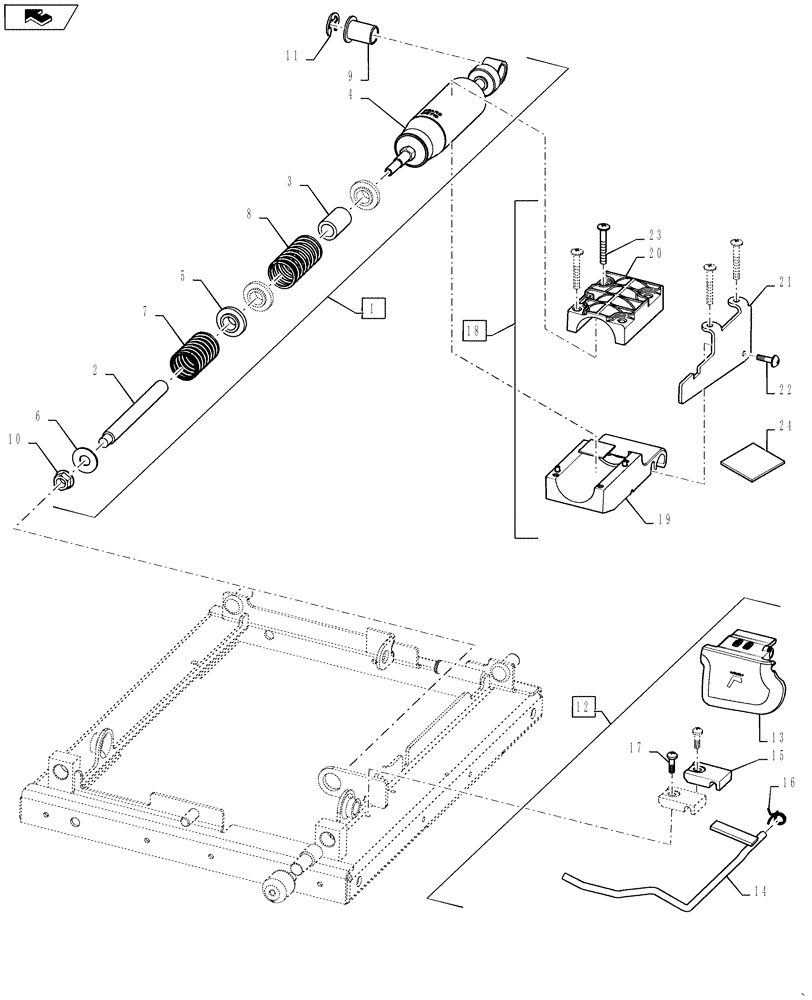

Запчасти Case IH STEIGER 400 (90.120.BC[02]) - SEAT PEDESTAL & MECHANICAL SUSPENSION - FOR-AFT ISOLATOR KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87347948

SERVICE KIT

Fore & Aft Isolator Service Kit - Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Stabilizer Rod - Incl In 1

1шт.

3

NSS

NOT SOLD SEPARAT

Bumper, Back - Incl In 1

1шт.

4

NSS

NOT SOLD SEPARAT

Shock Absorber - Incl In 1

1шт.

5

NSS

NOT SOLD SEPARAT

Bushing - Incl In 1

2шт.

6

NSS

NOT SOLD SEPARAT

Washer, Spring Retainer - Incl In 1

2шт.

7

NSS

NOT SOLD SEPARAT

Spring, Short - Incl In 1

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Long - Incl In 1

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing - Incl In 1

1шт.

10

NSS

NOT SOLD SEPARAT

Nut, Flange, 3/8-16 - Incl In 1

1шт.

11

NSS

NOT SOLD SEPARAT

Retaining Ring, 1/2 - Incl In 1

1шт.

12

373470A2

KIT

Fore & Aft Control Kit - Incl 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

Knob, Isolator - Incl In 12

1шт.

14

NSS

NOT SOLD SEPARAT

Lever Assy. - Incl In 12

1шт.

15

NSS

NOT SOLD SEPARAT

Block, Retaining - Incl In 12

2шт.

16

NSS

NOT SOLD SEPARAT

Spring - Incl In 12

1шт.

17

NSS

NOT SOLD SEPARAT

Screw, Self Tapping - Incl In 12

2шт.

18

333296A1

SERVICE KIT

Isolator Mounting Block Kit - Incl 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

Block, Isolator Mount - Incl In 18

1шт.

20

NSS

NOT SOLD SEPARAT

Block, Isolator Mount Top - Incl In 18

1шт.

21

NSS

NOT SOLD SEPARAT

Plate, Isolator Mount - Incl In 18

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Pan Hd. #10 x .625 - Incl In 18

2шт.

23

NSS

NOT SOLD SEPARAT

Screw, Truss Hd., #10-16 x 38.1mm - Incl In 18

4шт.

24

NSS

NOT SOLD SEPARAT

Tape, Foam - Incl In 18

1шт.
