(90.120.BB[01]) - SEAT SUSPENSION ASSY - MECHANICAL - STANDARD & DELUX OPTION

Запчасти Case IH STEIGER 400 (90.120.BB[01]) - SEAT SUSPENSION ASSY - MECHANICAL - STANDARD & DELUX OPTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

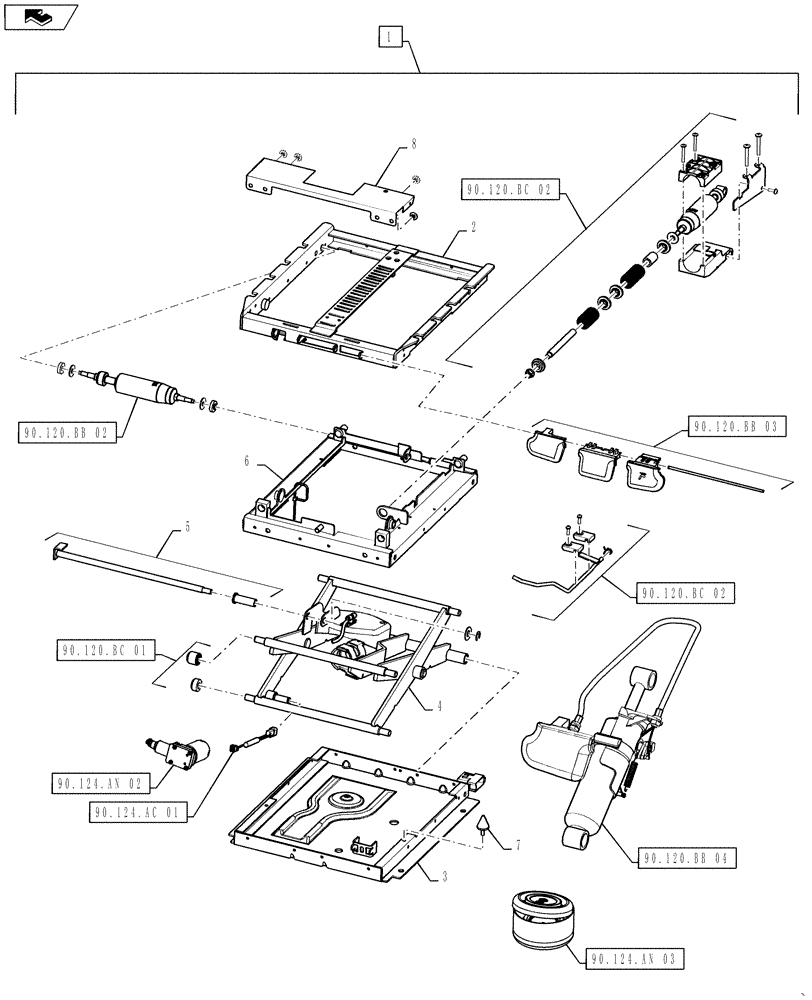

Схема запчастей Case IH STEIGER 400 - (90.120.BB[01]) - SEAT SUSPENSION ASSY - MECHANICAL - STANDARD & DELUX OPTION (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
90.124.an 03
3
2
90.120.bb 02
1
8
6
7
4
90.120.bb 03
90.120.bc 01
90.120.bc 02
90.124.ac 01
90.120.bc 02
90.124.an 02
5
90.120.bb 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84406039

SERVICE KIT

Seat Suspension Assy. - Incl 2 - 8

1шт.

2

333274A2

ISOLATOR

Upper

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension Scissor

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

333273A1

HOUSING

Upper

1шт.

7

333295A1

BUMPER

Suspension Bumper Kit

1шт.

8

302029A2

PLATE

Cover

1шт.
