(90.100.AB[06]) - ENGINE HOOD, GRILL AND SUPPORT - STEIGER 400 - 500

Запчасти Case IH STEIGER 400 (90.100.AB[06]) - ENGINE HOOD, GRILL AND SUPPORT - STEIGER 400 - 500 (90) - PLATFORM, CAB, BODYWORK AND DECALS

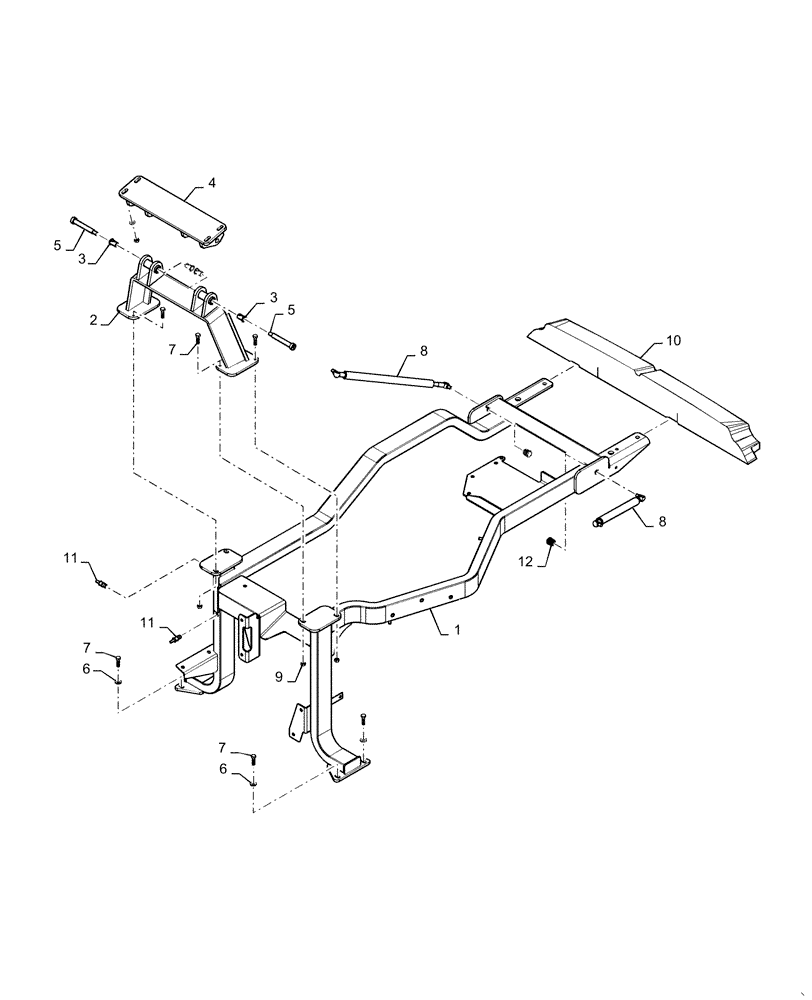

Схема запчастей Case IH STEIGER 400 - (90.100.AB[06]) - ENGINE HOOD, GRILL AND SUPPORT - STEIGER 400 - 500 (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
7
8
12
3
5
7
6
1
10
3
9
4
11
11
8
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84358565

HOOD

Support, Horizontal

1шт.

2

84358561

HOOD

Rear Hood Support

1шт.

3

87711882

NYLON BEARING,15.9mm ID x 17.45mm OD x 29.34mm L

4шт.

4

84355802

PLATE

Hood Pivot

1шт.

5

87711881

BOLT,M12 x 1.75 x 100mm

Shoulder, M12 x 16x 100mm

2шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

For service, remove studs from Rear Hood Support and replace with M10 bolts and washers

1шт.

8

84561097

GAS STRUT

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

10

47441334

FOAM INSULATION

Top

1шт.

11

426285A1

STUD

Threaded Captive

3шт.

12

295004A1

PLUG

Poly, Push-In

2шт.
