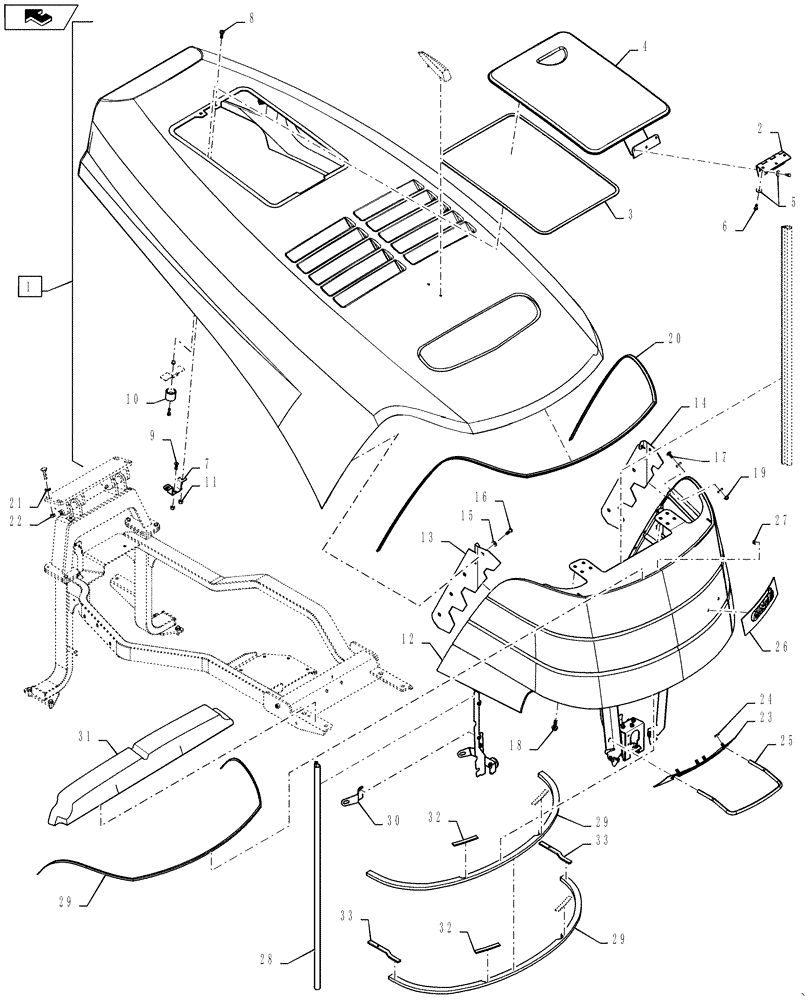

Запчасти Case IH STEIGER 400 (90.100.AB[04]) - ENGINE HOOD, GRILL AND SUPPORT - STEIGER 400 - 500 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84413151

HOOD

Hood W/ Substucture - Incl 2 - 11

1шт.

2

87738661

FIXED HINGE

Flat

1шт.

3

84247283

SEAL

Hood Access

1шт.

4

84413156

ACCESS COVER

Filter Access

1шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

22шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

7

84414131

SECURING STRAP

Latch

1шт.

8

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

9

84364039

SCREW,Phil Flat Hd, Csk, M5 x 16mm, Cl 4.8

FLH, M5 x 16 Type H

1шт.

10

84414133

LATCH

Base

1шт.

11

832-10405

NUT,M5 x .8, Cl 8

3шт.

12

84414134

GRILLE

Upper Weldment

1шт.

13

NSS

NOT SOLD SEPARAT

Bracket, RH Attachment - Incl with 1

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket, LH Attachement - Incl with 1

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

16

86512788

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 30mm, Cl 10.9

Hex Socket, Button Head, M8 x 30

8шт.

17

847-3616

SERRATED SCREW,Sl Truss, M6 x 16mm, Cl 10.9

8шт.

18

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

8шт.

19

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

20

47389473

SEAL

Foam

1шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

22

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

23

87498055

PLATE

Trigger Support

1шт.

24

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

4шт.

25

84197327

HANDLE

Hood

1шт.

26

87716230

EMBLEM

CIH

1шт.

27

131-431

PUSH-ON NUT,Self, Threading, 1/4"

1/4 PALNUT

4шт.

28

87350510

SEAL

Bulb, Cut To Length 1342 mm (52.8 inches)

2шт.

29

87440015

SEALING STRIP,15mm W x 1780mm L x 7.6mm Thk

Foam

2шт.

30

84347347

BRACKET

Hood Lock

1шт.

31

84193796

FOAM

Top, Radiator

1шт.

32

47458718

SEALING STRIP,100mm L

Foam

4шт.

33

47458719

SEALING STRIP,175mm L

Foam

2шт.
