(88.055.11) - DIA KIT, ADDITIONAL PRODUCTS - BEACON LIGHT KIT

Запчасти Case IH STEIGER 400 (88.055.11) - DIA KIT, ADDITIONAL PRODUCTS - BEACON LIGHT KIT (88) - ACCESSORIES

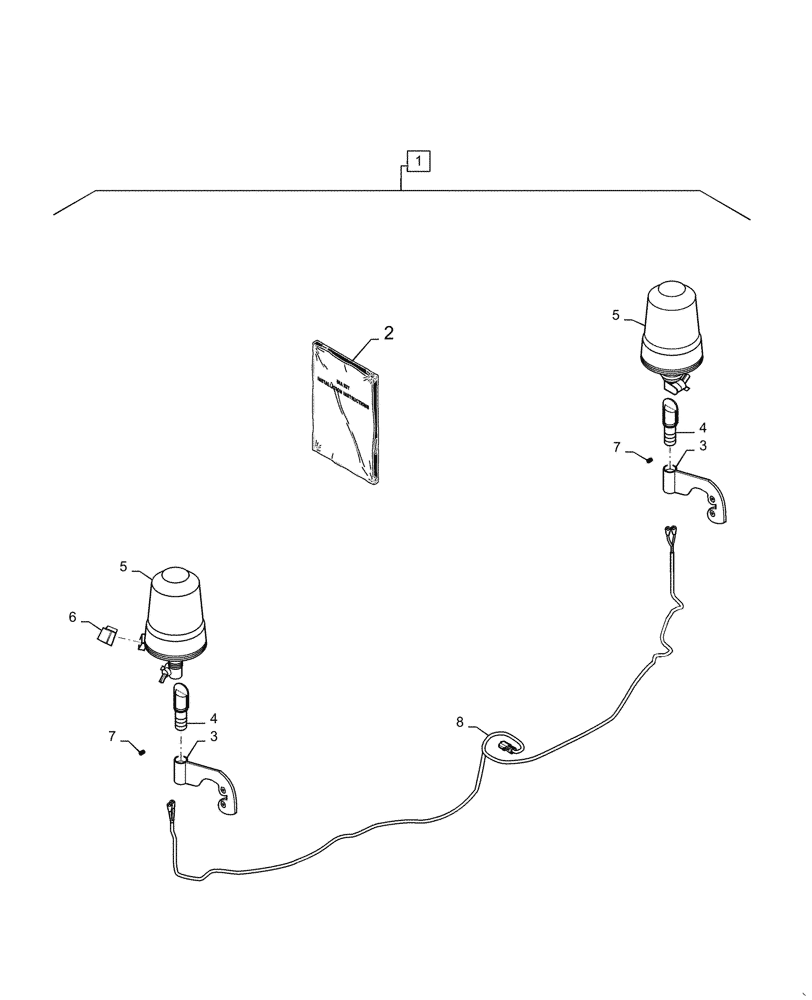

Схема запчастей Case IH STEIGER 400 - (88.055.11) - DIA KIT, ADDITIONAL PRODUCTS - BEACON LIGHT KIT (88) - ACCESSORIES
8
6
4
7
7
3
4
5
3
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84313048

KIT

BEACON - Incl 2 - 8

1шт.

2

84313049

INSTRUCTION

INSTALLATION

1шт.

3

84307951

BRACKET

BEACON

2шт.

4

244106A1

ELEC CONNECTOR

2шт.

5

175048A1

BEACON

2шт.

6

87414325

SWITCH

BEACON/STROBE

1шт.

7

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

2шт.

8

84250861

HARNESS

BEACON LIGHT, DUAL

1шт.

Выбрано товаров: 8
