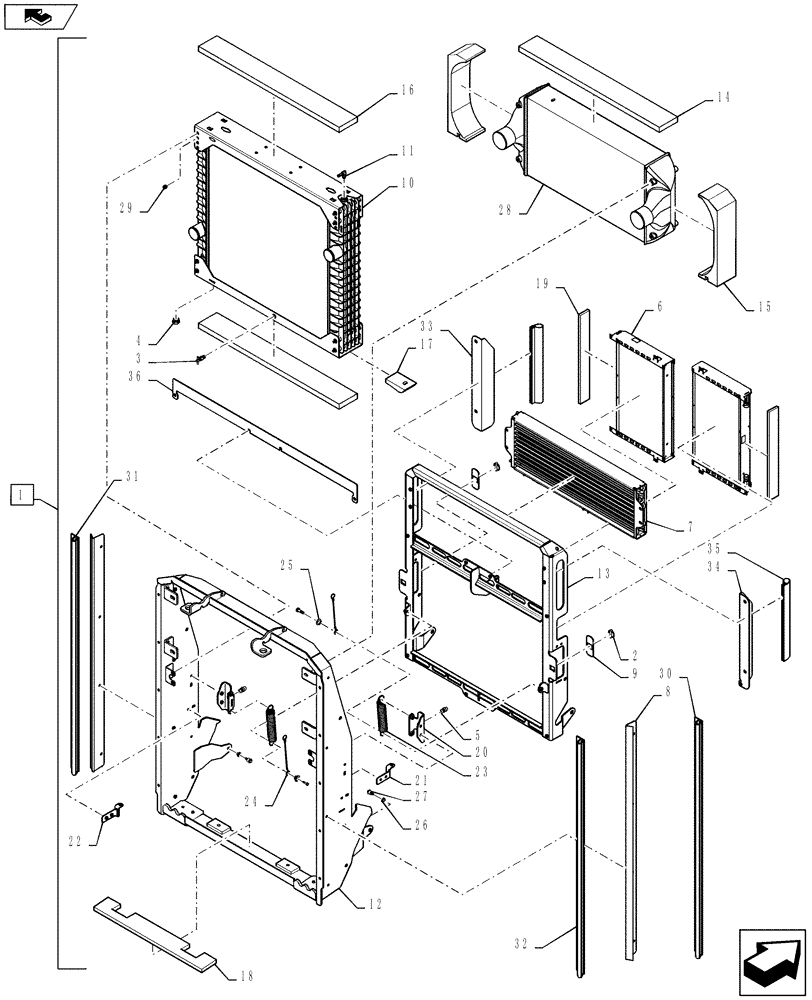

Запчасти Case IH STEIGER 400 (10.400.BE[01]) - COOLER ASSY. - ENGINE (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

RC COOLING PACKAGE ASSY. - Order Components 2 - 36

1шт.

2

132757

LINCH PIN,11.11mm OD x 44.45mm L

2шт.

3

217-92

COCK

VALVE

1шт.

4

217-86

PLUG,Hex Hd, 1/4"-18, Brass

1шт.

5

363226A1

BUMPER

2шт.

6

84203529

OIL COOLER

AL77 HD X 720MM

2шт.

7

84203530

CONDENSER

1шт.

8

84208076

ANGLE

BULB SEAL

2шт.

9

84210283

DECAL

WEAR PAD

2шт.

10

84296641

RADIATOR

TP4, 5 ROW 10 FPI

1шт.

11

84316319

PIPE FITTING

BLEED

1шт.

12

84316323

FRAME

COOLER MAIN

1шт.

13

84316324

FRAME

COOLER SWING OUT

1шт.

14

84316325

SEAL,Air, 1015mm L

AIR

1шт.

15

84316326

SEAL

AIR

2шт.

16

84316327

SEAL

AIR

2шт.

17

84316328

SEAL,Air, 146mm L

AIR

2шт.

18

84316329

SEAL,Air, 724mm L

AIR

1шт.

19

84316330

SEAL

AIR

2шт.

20

84316331

BRACKET

COOLING PKG BUMP STOP

2шт.

21

84316332

BRACKET

RH LINCH PIN

1шт.

22

84316334

BRACKET

LH LINCH PIN

1шт.

23

84316335

SPRING

EXTENSION

2шт.

24

84316336

CABLE,480mm L

2шт.

25

84316337

WASHER

TOP HAT

4шт.

26

84316339

HUB,10mm ID x 23mm OD x 10.8mm L

COLLAR, SLIDING

2шт.

27

84354808

THREADED BUSHING

PIVOT

2шт.

28

84378060

RADIATOR

COOLER ASSY, CHARGE AIR

1шт.

29

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

4шт.

30

84323051

SEAL

P-Style Bulb

1шт.

31

84323052

SEAL

P-Style Bulb

2шт.

32

84323053

SEAL

P-Style Bulb

1шт.

33

84496856

BRACKET

1шт.

34

84496857

BRACKET

1шт.

35

84541472

SEAL

2шт.

36

84496857

BRACKET

1шт.

37

87619895

HOSE,7.90mm ID x 390.00mm L

Dearation Tank to Radiator Vent (Not Shown)

1шт.

38

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Radiator vent (Not Shown)

1шт.
