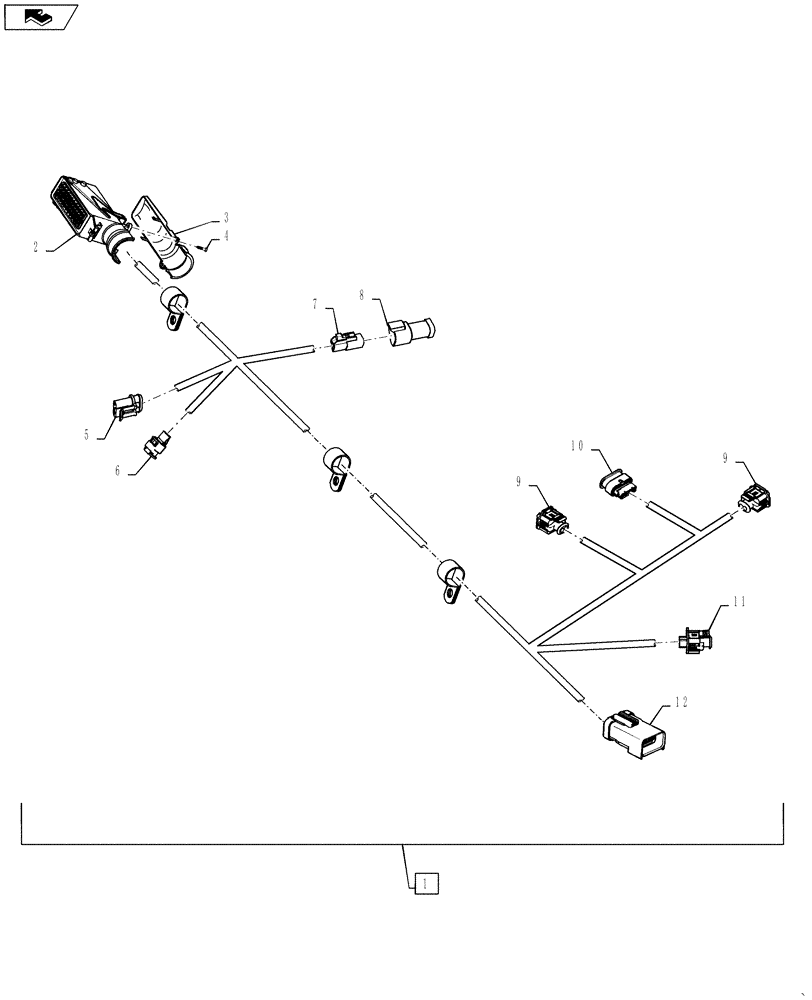

Запчасти Case IH STEIGER 400 (55.988.AD[02]) - HARNESS, SELECTIVE CATYLTIC REDUCTION (SCR) UREA (55) - ELECTRICAL SYSTEMS

1

47461047

HARNESS

SCR System to Chassis - Incl 2 - 12

1шт.

2

87713291

WIRE CONNECTOR

18 PIN, DNOX Supply Module (C190)

1шт.

3

87713301

CAP

(C190)

1шт.

4

87713302

SCREW,Phillips Drive, Round HD, M3 x 12mm

(C190)

2шт.

5

84062580

CONNECTOR, ELEC

3 Pin, DEF Tank Level / Temp. Sensor (C194M)

1шт.

6

84192117

ELEC CONNECTOR

2 Pin, DEF Tank Heater Control Valve (C197)

1шт.

7

225295C1

ELEC CONNECTOR,Female, 3 Pin

3 Pin, NOX Bus Terminator (C169M)

1шт.

8

84058092

CONTACT HOUSING,120 Ohm Resistor

3 Pin, NOX Bus Terminator ((R169F)

1шт.

9

87709793

WIRE CONNECTOR,Female, 2 Cavities

2 Pin, Upstream / Downstream Temp. Sensor (C191, C193)

1шт.

10

84190317

WIRE CONNECTOR,Female, 5 Cavities

5 Pin, NOX Sensor (C192)

1шт.

11

87709793

WIRE CONNECTOR,Female, 2 Cavities

2 Pin, DEF Dosing Module (C196)

1шт.

12

87382923

ELEC CONNECTOR,Male, 10 Cavities

10 Pin, To Front Frame Harness ( C195M)

1шт.
