Запчасти Case IH STEIGER 400 (55.680.AO[01]) - RADAR - GROUND SPEED (55) - ELECTRICAL SYSTEMS

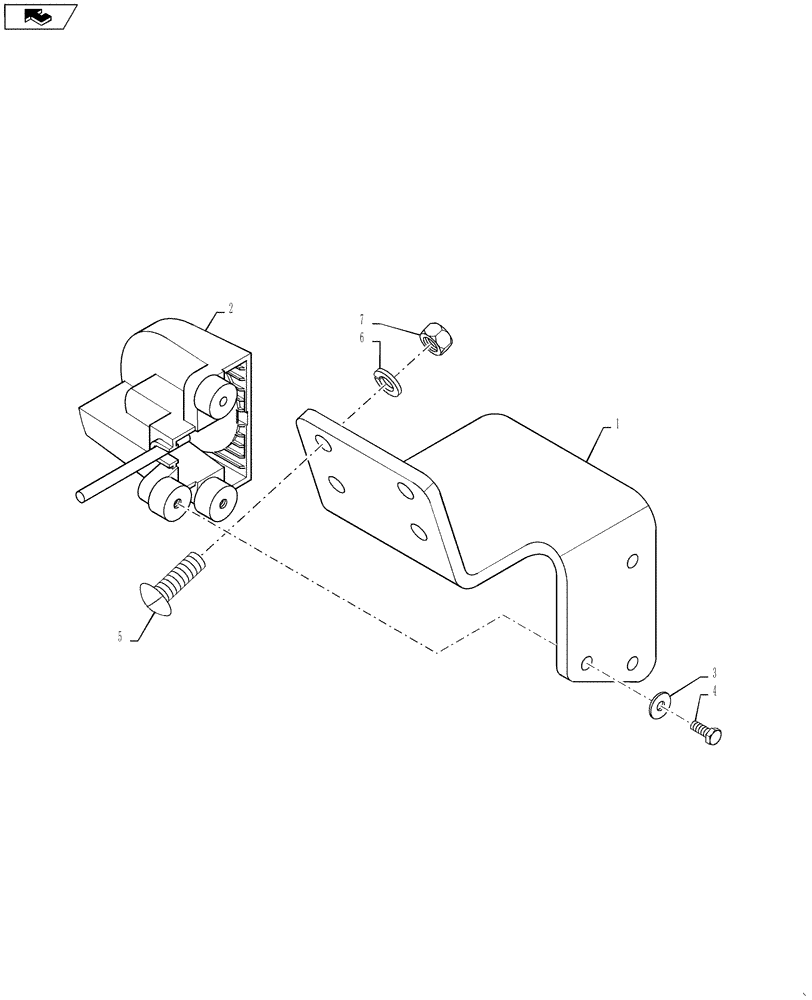

Схема запчастей Case IH STEIGER 400 - (55.680.AO[01]) - RADAR - GROUND SPEED (55) - ELECTRICAL SYSTEMS
5
6
4
home
1
3
2
7

Артикул

Название

Примечание

Количество

1

84243107

BRACKET, SUPPORTING

Ground Speed Radar

1шт.

2

87733890

SENSOR

Ground Speed Radar

1шт.

2

87733890R

REMAN-SENSOR

STEIGER 350, STEIGER 400, STEIGER 450, STEIGER 500, All ROW TRAC TRACTOR, Ground Speed Radar (1/13-)

1шт.

2

87733890C

CORE-SENSOR

Return Number

1шт.

2

84225080

SENSOR

Ground Speed Radar, UK Only

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

5

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

Выбрано товаров: 10
