Запчасти Case IH STEIGER 400 (55.620.AA[01]) - HARNESS - EHR VALVES, 4 SPOOL - OPTIONAL (55) - ELECTRICAL SYSTEMS

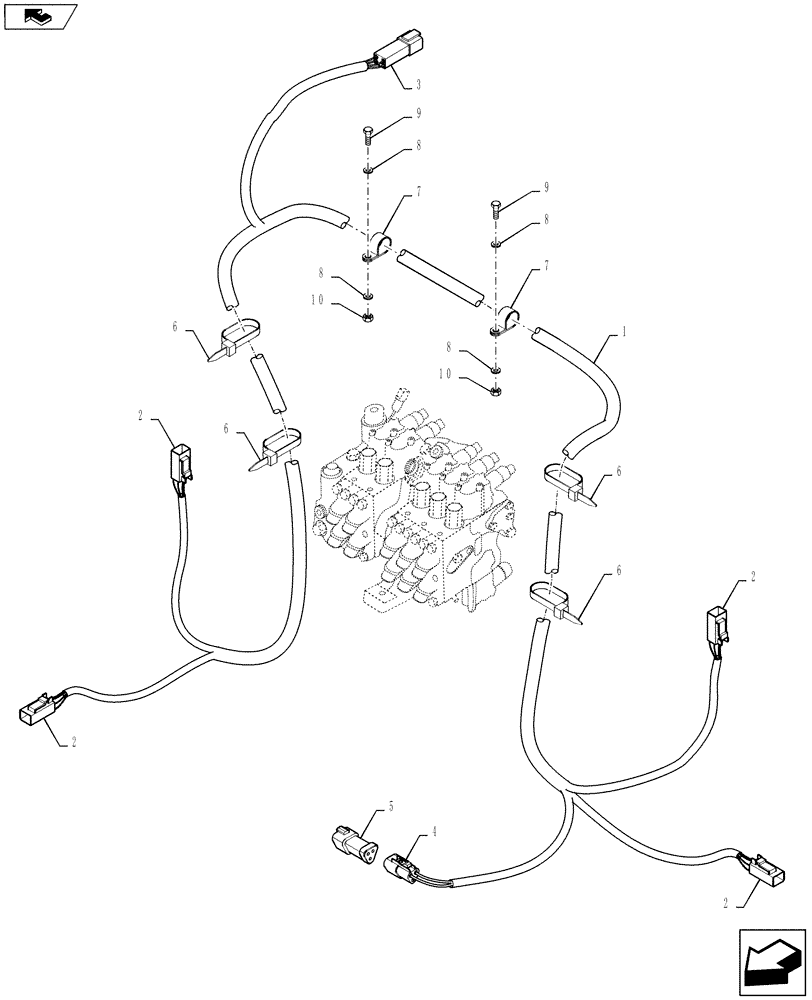

Схема запчастей Case IH STEIGER 400 - (55.620.AA[01]) - HARNESS - EHR VALVES, 4 SPOOL - OPTIONAL (55) - ELECTRICAL SYSTEMS
6
2
8
1
2
8
2
7
6
8
9
2
6
6
10
home
7
10
4
8
3
5
9

Артикул

Название

Примечание

Количество

1

84151662

WIRE HARNESS

Incl 2 - 5

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Pin, Remote Valve

4шт.

3

225326C1

ELEC CONNECTOR,Male, 4 Pin

4 Pin, To Rear Frame Harness

1шт.

4

225295C1

ELEC CONNECTOR,Female, 3 Pin

3 Pin, Bus 2 Terminator

1шт.

5

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

7шт.

7

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

10

86500689

NUT,M10 x 1.5, Cl 10

2шт.

Выбрано товаров: 10
