Запчасти Case IH STEIGER 400 (55.510.AF[03]) - CAB - MAIN ELECTRONICS, HARNESS WITH FUSES AND RELAYS (55) - ELECTRICAL SYSTEMS

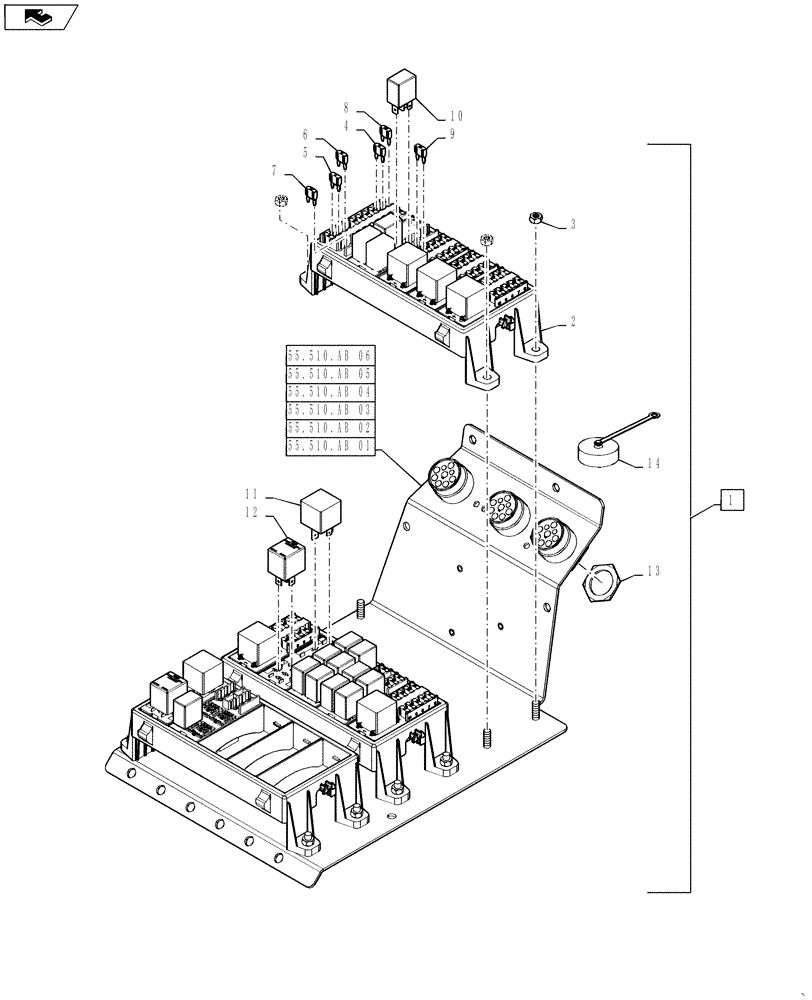

Схема запчастей Case IH STEIGER 400 - (55.510.AF[03]) - CAB - MAIN ELECTRONICS, HARNESS WITH FUSES AND RELAYS (55) - ELECTRICAL SYSTEMS
6
13
8
4
5
55.510.ab 06
55.510.ab 04
home
2
12
55.510.ab 01
55.510.ab 03
9
7
11
55.510.ab 02
3
1
10
55.510.ab 05
14

Артикул

Название

Примечание

Количество

1

84311775

HARNESS

Cab, With Fuses & Relays, Incl 2 - 14, North America

1шт.

1

84311783

HARNESS

Cab, With Fuses & Relays, Incl 2 - 14, Europe

1шт.

2

82039691

FUSE BOX

Frame

3шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

12шт.

4

121413A1

FUSE,15A, Mini, Blue

18шт.

5

121410A1

FUSE,5A, Mini, Tan

8шт.

6

121412A1

FUSE,10A, Mini, Red

26шт.

7

121414A1

FUSE,20A, Mini, Yellow

6шт.

8

121415A1

FUSE,25A, Mini, Clear

North America Configuration

11шт.

8

121415A1

FUSE,25A, Mini, Clear

Europe Configuration

12шт.

9

121416A1

FUSE,30A, Mini, Green

2шт.

10

82023238

RELAY,12V, 20A

Micro, North America Configuration

15шт.

10

82023238

RELAY,12V, 20A

Micro, Europe Configuration

16шт.

11

368459A1

RELAY,12V, 70A

70 Amp, Power

7шт.

12

87436836

RELAY,12V, 40 Amp

ISO Mini

2шт.

13

87737472

JAM NUT,Hex, M35 x 1

Hex, Nylon

3шт.

14

87737474

LID

Cap & Lanyard

3шт.

Выбрано товаров: 17
