Запчасти Case IH STEIGER 400 (55.404.BD[01]) - REAR FENDER WORKLAMP (55) - ELECTRICAL SYSTEMS

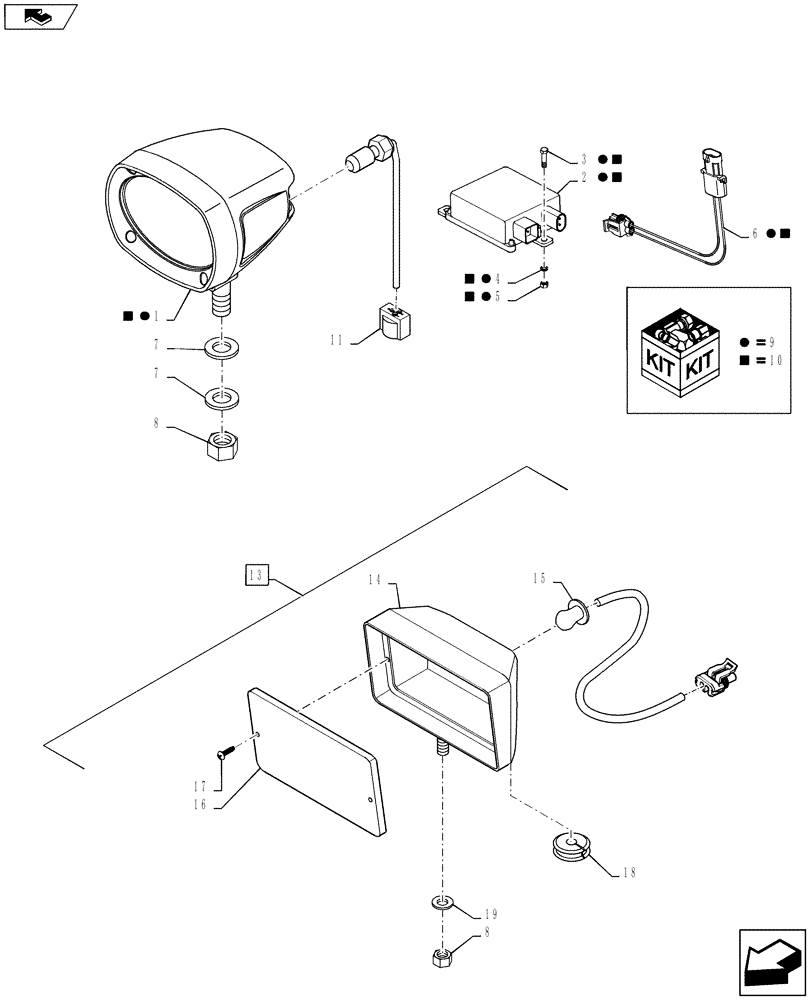

Схема запчастей Case IH STEIGER 400 - (55.404.BD[01]) - REAR FENDER WORKLAMP (55) - ELECTRICAL SYSTEMS
home
9
9
10
6
7
14
10
18
9
7
5
10
10
13
19
15
9
8
17
3
4
2
9
16
10
10
9
10
9
11
8
1
9
10

Артикул

Название

Примечание

Количество

1

87475205

LAMP,HID, 12V, 35W, Clear

Flood, H.I.D. - Incl 7 - 8, 11 - 12

2шт.

1

87475202

LAMP

Trap, H.I.D. - Incl 7 - 8, 11 - 12

2шт.

2

87475204

BALLAST

Rear H.I.D.

1шт.

2

87475204R

REMAN ELECT CONTROL

STEIGER 350, STEIGER 400, STEIGER 450, STEIGER 500, All ROW TRAC TRACTOR, Rear H.I.D. (1/13-)

1шт.

2

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

5

832-10405

NUT,M5 x .8, Cl 8

1шт.

6

87475203

CABLE TERMINAL

Ballast to Rear Harness

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

719618003

FIP KIT

HID Rear Flood, Incl 1 - 6

1шт.

10

719702013

FIP KIT

HID Rear Trap, Incl 1 - 6

1шт.

11

87475201

BULB,HID

HID with Harness

2шт.

12

87722023

BULB,HID, 85V, 35W

HID D1S OSRAM - Incl in 1, (Not Shown)

1шт.

13

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Incl 14 - 17

1шт.

14

1964806C1

BEZEL

Work Lamp

1шт.

15

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

16

276498A1

LENS

Work Lamp

1шт.

17

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

18

87030421

GROMMET,3/8" ID x 1 1/4" Groove Dia, Str Cut

4шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 22
