Запчасти Case IH STEIGER 400 (55.404.AC[01]) - BEACON - ASSY - SINGLE & DUAL (55) - ELECTRICAL SYSTEMS

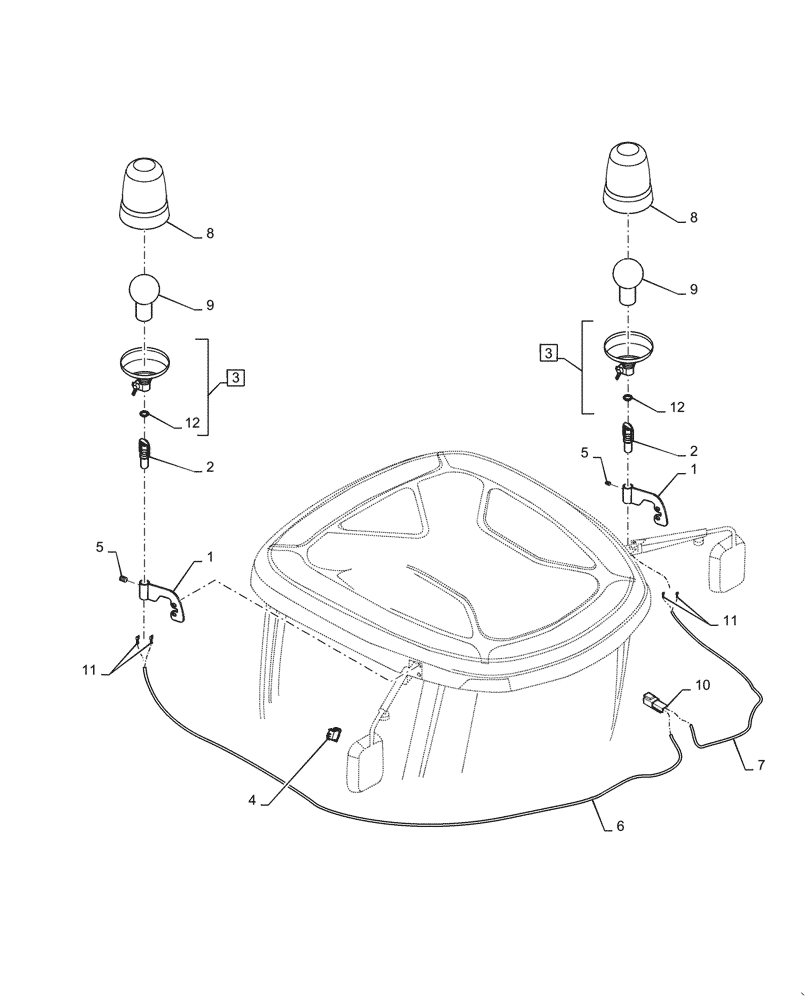

Схема запчастей Case IH STEIGER 400 - (55.404.AC[01]) - BEACON - ASSY - SINGLE & DUAL (55) - ELECTRICAL SYSTEMS
5
7
2
12
10
12
11
6
9
3
1
2
1
3
4
9
8
5
8
11

Артикул

Название

Примечание

Количество

1

84307951

BRACKET

Bracket, Beacon

1шт.

Qty. of 2 Required for Dual Beacon Assy.

1шт.

2

244106A1

ELEC CONNECTOR

Beacon Adaptor

1шт.

Qty. of 2 Required for Dual Beacon Assy.

1шт.

3

84337818

BEACON

Flexible Base

1шт.

Qty. of 2 Required for Dual Beacon Assy.

1шт.

Internal O - Ring P/N 172033

1шт.

4

87414325

SWITCH

Beacon / Strobe Light

1шт.

5

86639305

SET SCREW,M6 x 6mm

1шт.

Qty. of 2 Required for Dual Beacon Assy.

1шт.

6

84250861

HARNESS

Dual Beacon Assy.

1шт.

7

84273302

WIRE HARNESS

Single Beacon Assy.

1шт.

8

192809A1

LENS

Amber

1шт.

9

3217312R1

BULB,H1, 12V, 55W

1шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

To Cab Roof Harness

1шт.

11

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Beacon Light, Beacon Ground

4шт.

12

172033

O-RING,2.989" ID x 3.129" OD x 0.07"

1шт.

Qty 1 Per Beacon

1шт.

Выбрано товаров: 18
