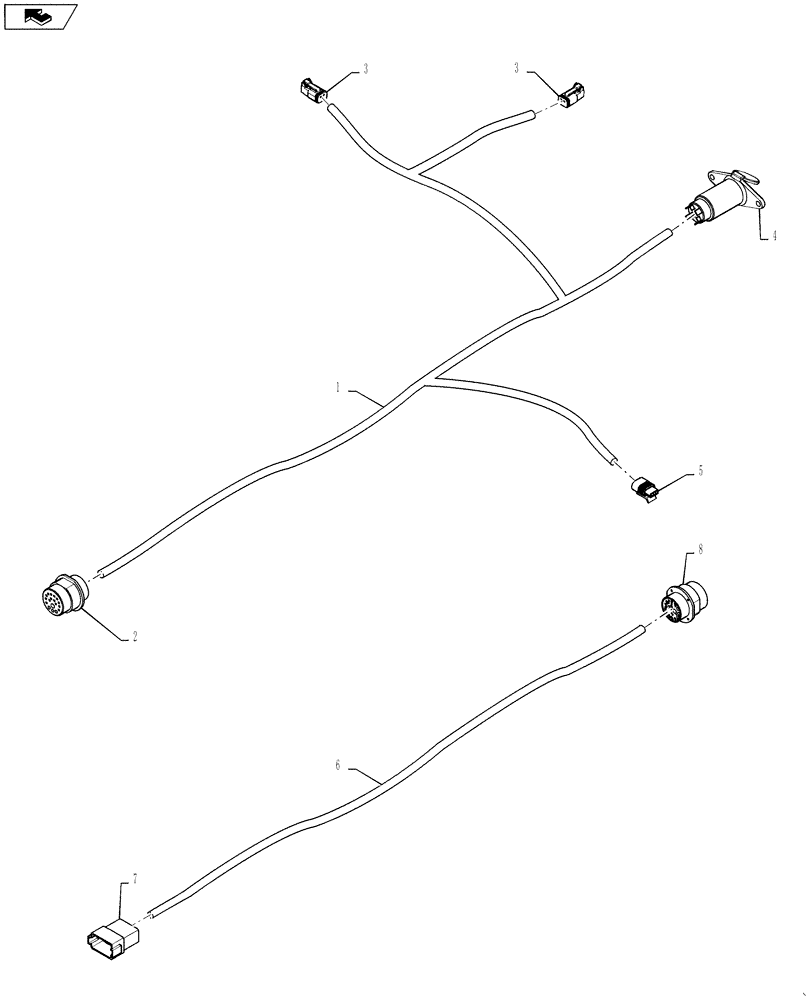

Запчасти Case IH STEIGER 400 (55.130.AR[02]) - 3 POINT HITCH - HARNESS - CAB AND CHASSIS (55) - ELECTRICAL SYSTEMS

1

84251834

HARNESS

TPH Chassis, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, TPH Bulkhead, C000M - Incl in 1

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

TPH Raise And Lower Solenoid, C209M, C224M

2шт.

3

84068583

PLUG,12 - 16 Ga, White

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

1шт.

3

87697944

TERMINAL

1шт.

4

367322A1

CONNECTOR, ELEC

Remote TPH Switch, C210

1шт.

5

198550A1

CONNECTOR, ELEC

TPH Position Potentiometer Sensor, C211

1шт.

5

84199554

1шт.

5

87668921

PLUG,Black

1шт.

5

87693328

TERMINAL

1шт.

5

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

1шт.

5

87686198

TERMINAL

1шт.

5

87704980

1шт.

6

84211364

HARNESS

TPH Cab, Incl 7 - 8

1шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

To Main Cab Harness, C610F

1шт.

7

84068583

PLUG,12 - 16 Ga, White

1шт.

7

87698541

LOCKING TAB,Wedge Lock, 12-Pin

1шт.

7

87695623

ELEC. TERMINAL PIN

1шт.

7

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

1шт.

7

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

1шт.

7

87697956

TERMINAL

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, TPH Bulkhead, C000F - Incl in 6

1шт.
