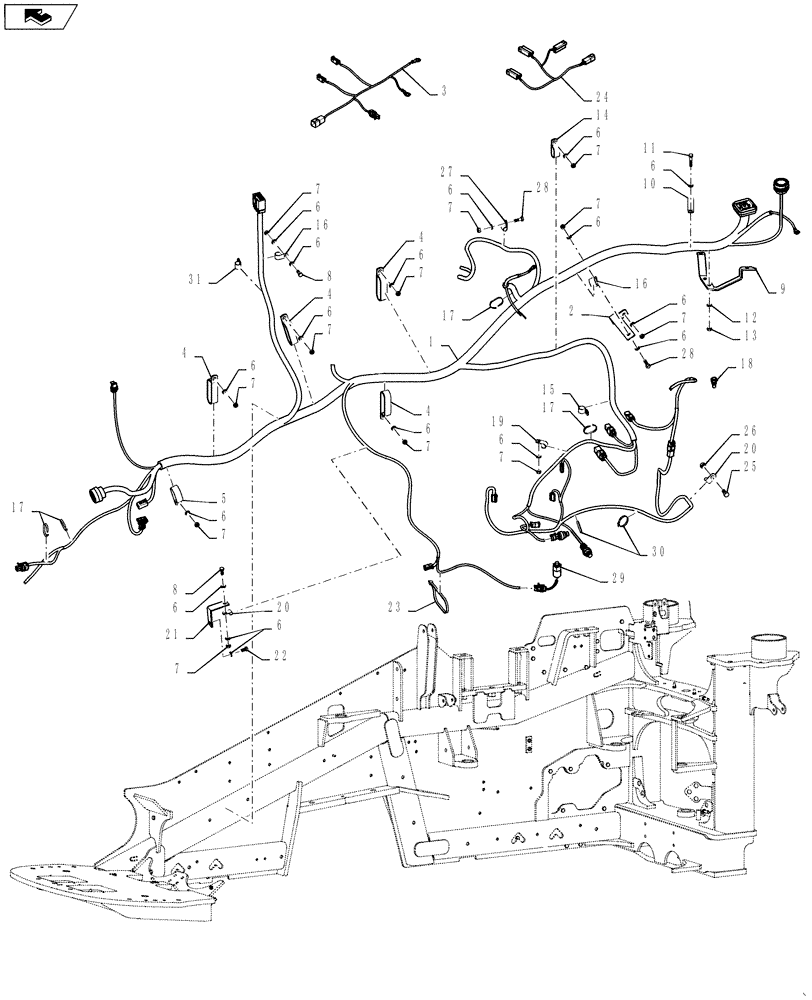

Запчасти Case IH STEIGER 400 (55.101.AC[01]) - FRONT MAIN WIRE HARNESS LAYOUT - SUSPENDED CAB - NAO/AUS (55) - ELECTRICAL SYSTEMS

1

84525119

WIRE HARNESS

Front Frame, Row Crop, Suspended Cab

1шт.

2

84383836

BRACKET

Harness

1шт.

3

84250841

HARNESS

Hydraulic Sub Assy.- Ref. Figure 55.100.AX(03)

1шт.

4

87561071

CLAMP

4шт.

5

L111928

CLAMP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

22шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

17шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

9

84427703

BRACKET

Rear Cab Wiring

1шт.

10

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

11

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

15

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

16

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

4шт.

17

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

18

87521424

TEMPERATURE SENDER

1шт.

19

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

6шт.

20

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

21

416512A1

BRACKET

Axle Plate

2шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

24

84297600

HARNESS

Washer Bottle - Ref. Figure 55.100.AX(01)

1шт.

25

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

29

84363710

DIFF PRESSURE SWITCH

Axle Lube

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.

31

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.
