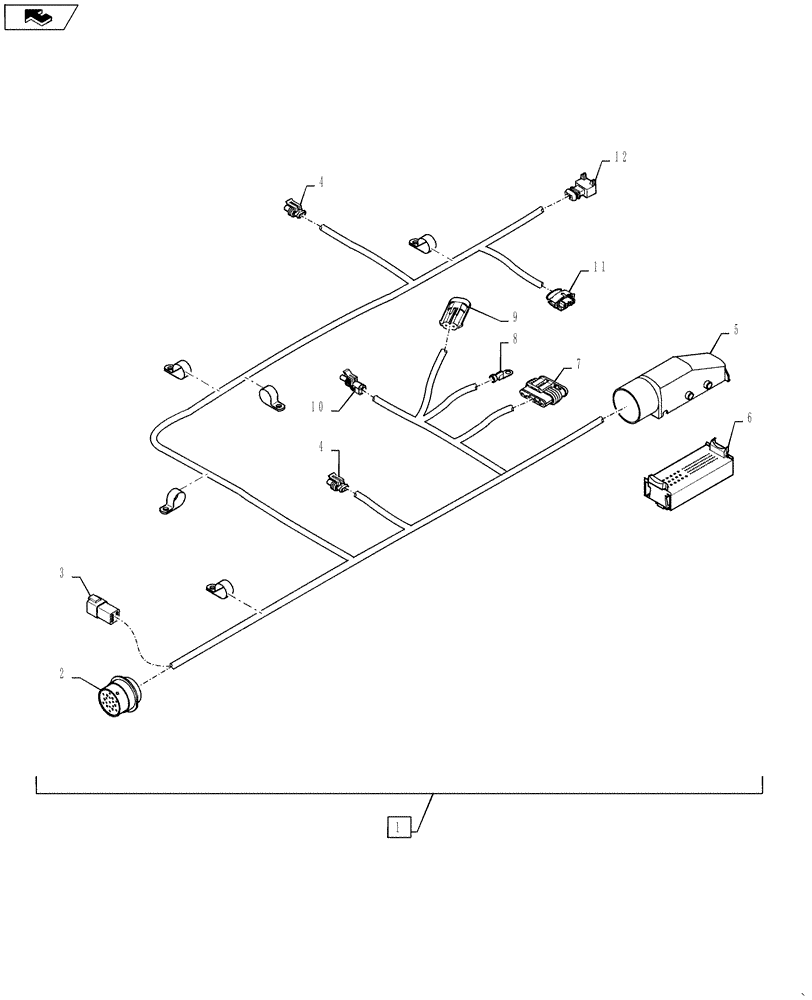

Запчасти Case IH STEIGER 400 (55.100.DP[04]) - HARNESS, ENGINE, 13L - STEIGER 400-500 (55) - ELECTRICAL SYSTEMS

1

84392265

WIRE HARNESS

Engine, 13L Incl 2 - 12

1шт.

2

87703918

TERMINAL CONNECTOR

21 Pin, To Front Frame Harness (C100M)

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Front Frame Harness (C150F)

1шт.

4

371614A1

ELEC CONNECTOR,Female, 2 Pin

Grid Heater Relay (C173) Fuel Filter restriction Switch (C178)

2шт.

5

8602412

CONTACT

Housing, Contact (C176)

1шт.

6

8602413

COVER

Cover, Contact Housing (C176)

1шт.

7

87688719

ELEC CONNECTOR,Female, 5 Cavities

5 Pin, Vistronic Fan (C152)

1шт.

8

PL

PROCURE LOCALLY

Ring Terminal, M5 Stud, Alternator D Terminal (C177)

1шт.

9

292549A1

CONNECTOR, ELEC

2 Pin, A/C High Pressure Switch (C175)

1шт.

10

245480C1

ELEC CONNECTOR,1 Pin

(C174)

1шт.

11

87709809

ELEC CONNECTOR

4 Pin, Temp. / Humidity Sensor (C151)

1шт.

12

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter Restriction (C179)

1шт.
